[Wash+] Replacing The Touch Panel

⚠️Note:

Disconnect the power source before disassembling electrical equipment.

Turn off the printer.
Remove the power cord

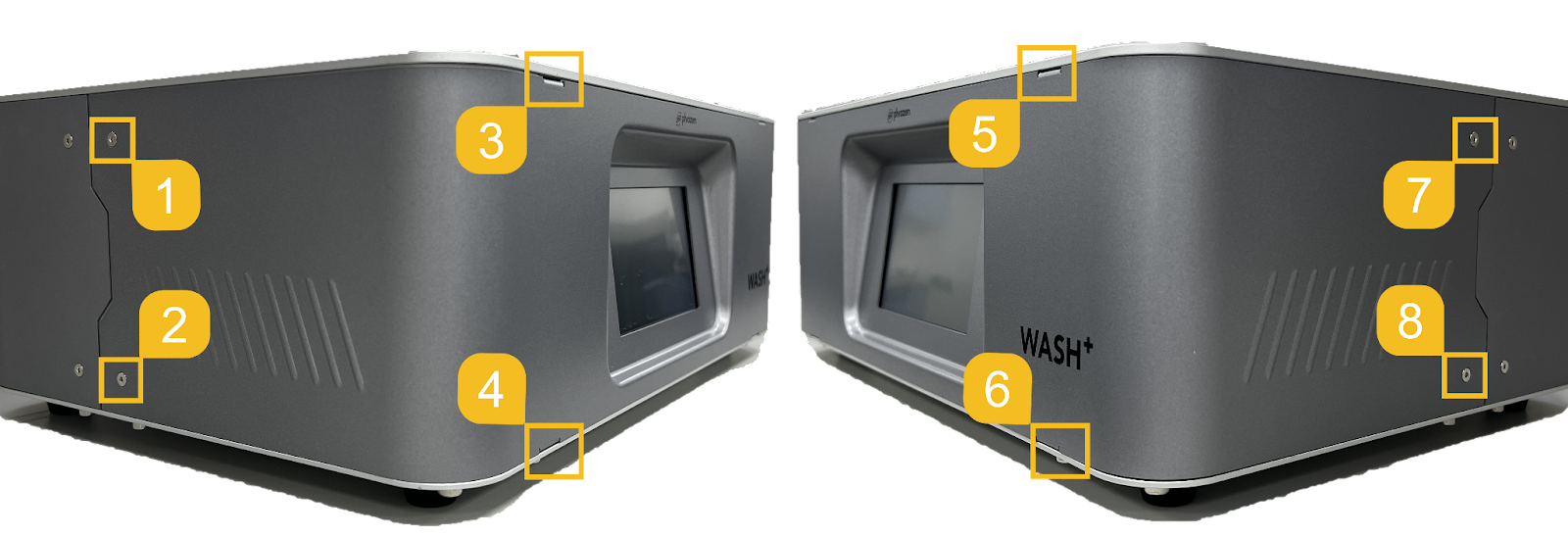

Use an Allen Wrench (Sizes 2, 2.5, and 3) to loosen 8 screws and open the front case.

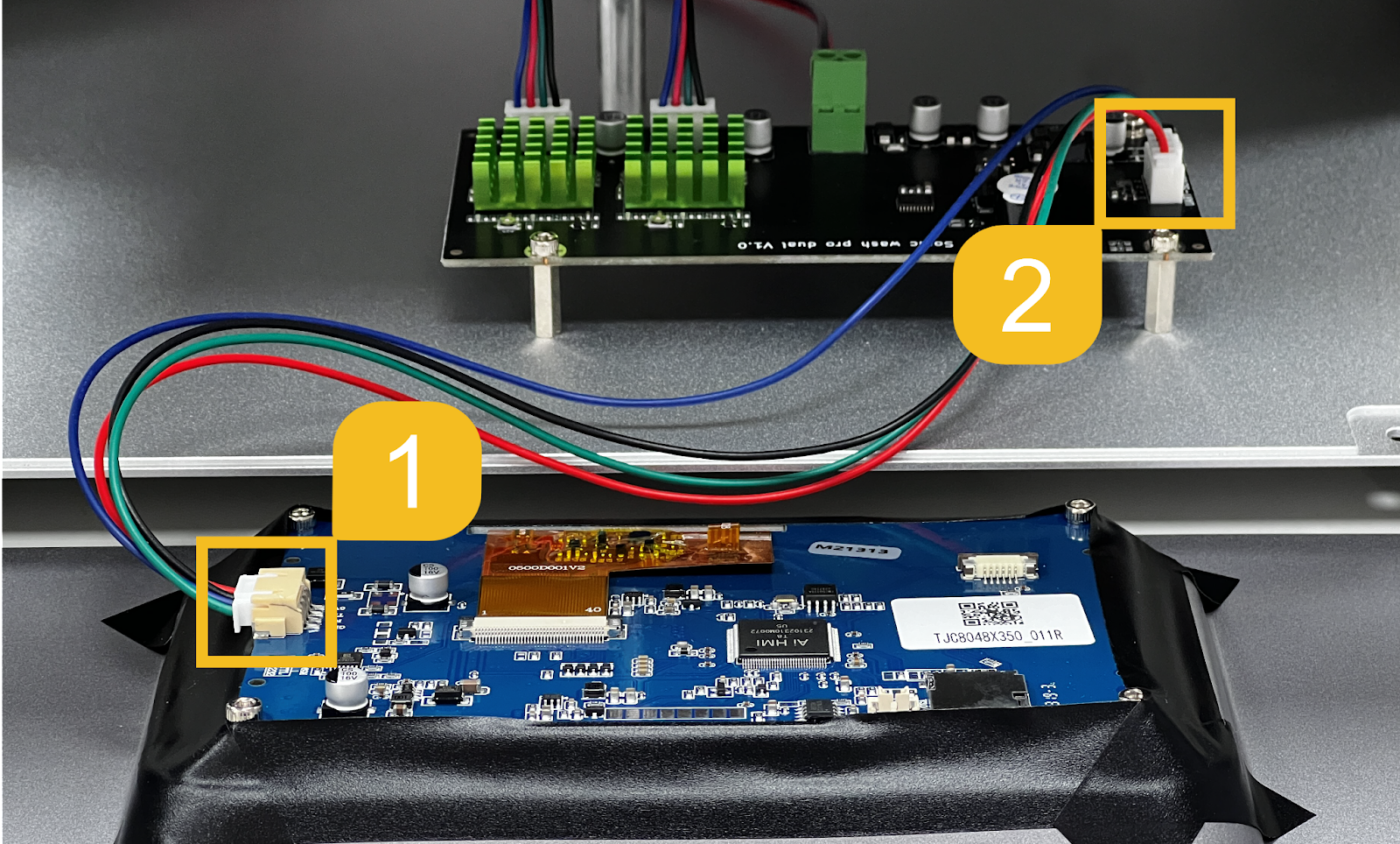

Remove the touch panel cable
Remove the black tape surrounding the touch panel.
Loosen the 4 screws securing the touch panel.
Place the new touch panel into the slot and connect the 4 screws at all the ends.
Secure the touch panel with a new black electrical tape.
Connect the touch panel cable and tighten the 8 screws to secure the front case.
Done, you are all set to use your Wash Station.
