[Wash+] Replacing the Switch Board

⚠️Note:

Disconnect the power source before disassembling electrical equipment.
When handling plugged-in equipment, ensure your hands are dry and, when possible, wear insulated gloves, protective clothing, and shoes with insulated soles.

Turn off the printer.
Remove the power cord.

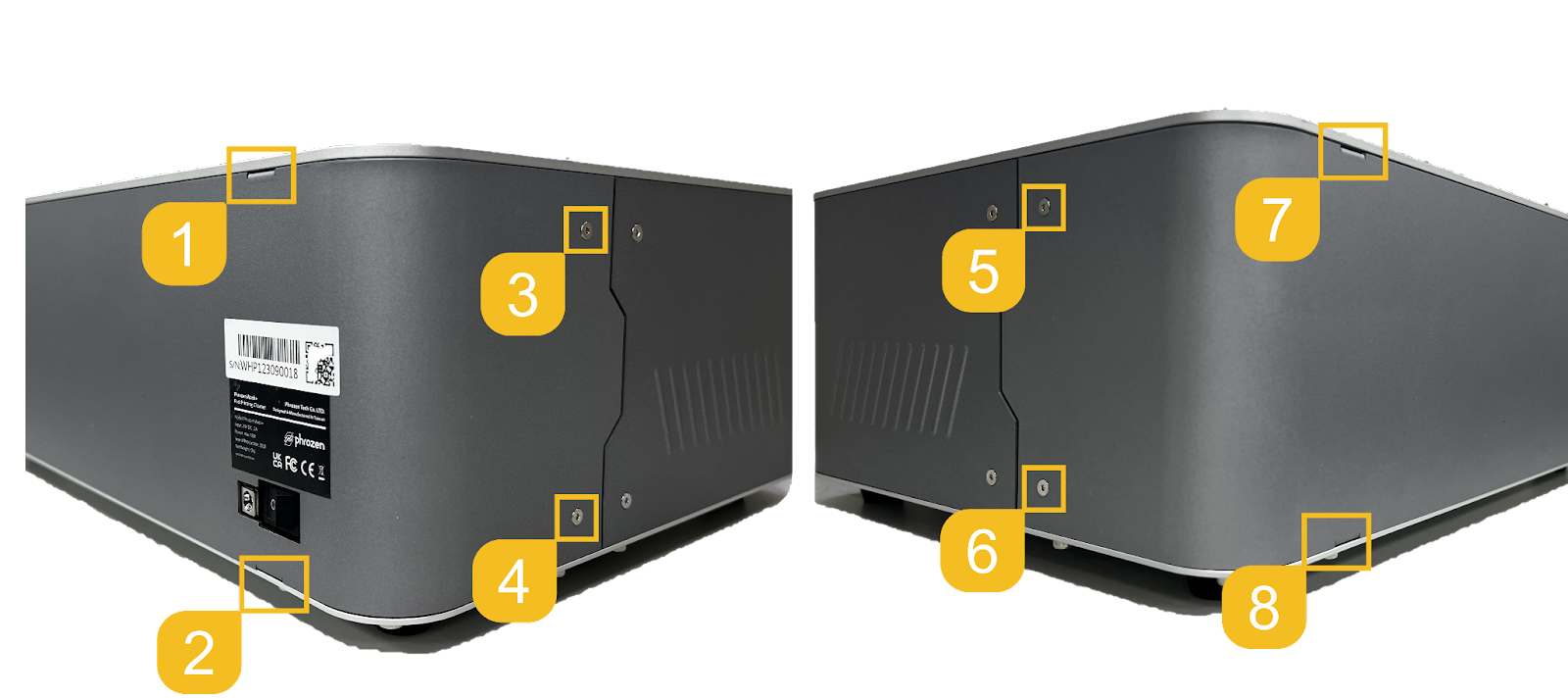

Use an Allen Wrench (Sizes 2, 2.5, and 3) to loosen 8 screws and open the rear case.

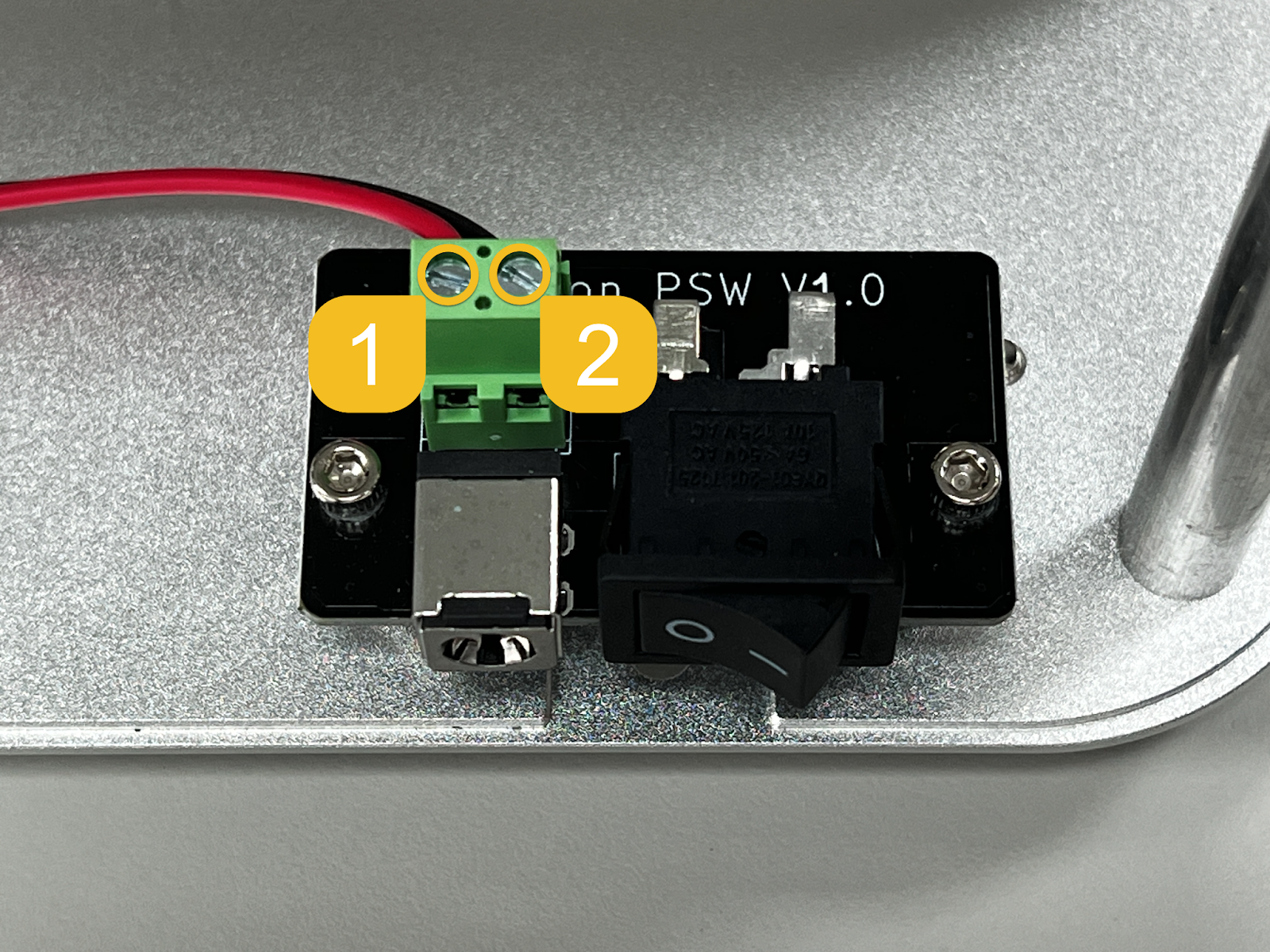

Use a slotted screwdriver to disconnect the power wires on the switchboard.
Loosen the 2 screws that are securing the switch board and replace it with a new one.
Secure the switch board by tightening the screws at both ends and connect the power wires.
Tighten all the 8 screws and place back the rear case of the unit.
Done, you are all set to use your Wash Station.
