[Wash+] Replacing the Motor

⚠️Note:

Disconnect the power source before disassembling electrical equipment.

Turn off the printer.
Remove the power cord
Use an Allen Wrench (Sizes 2, 2.5, and 3) to loosen 8 screws and open the front case.
Disconnect the Touch Panel Cable and Remove the Front Case to set it aside.

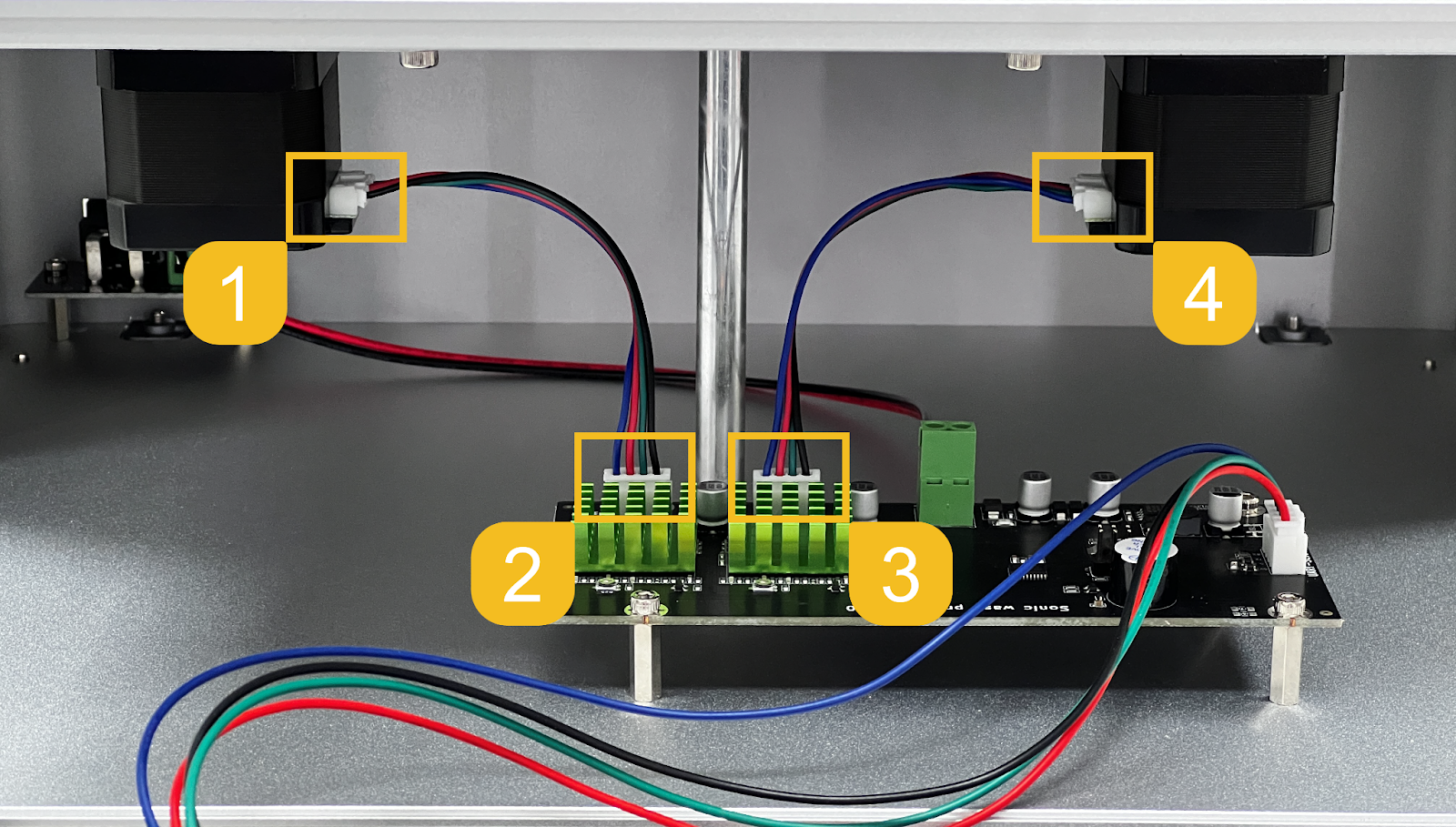

Disconnect the Motor Cable Connection(s).
Using the Allen Screw, remove the 4 screws around the Motor which you want to replace.
Install the new Motor and tighten the 4 screws around it.
Re-connect all the Motor connection(s).
Connect the Touch Panel Cable and Close the front case of the Wash Station.
Done, you are ready to use your Wash Station.
