[Wash+] Replacing the Mainboard

⚠️Note:

Disconnect the power source before disassembling electrical equipment.

Turn off the printer.
Remove the power cord

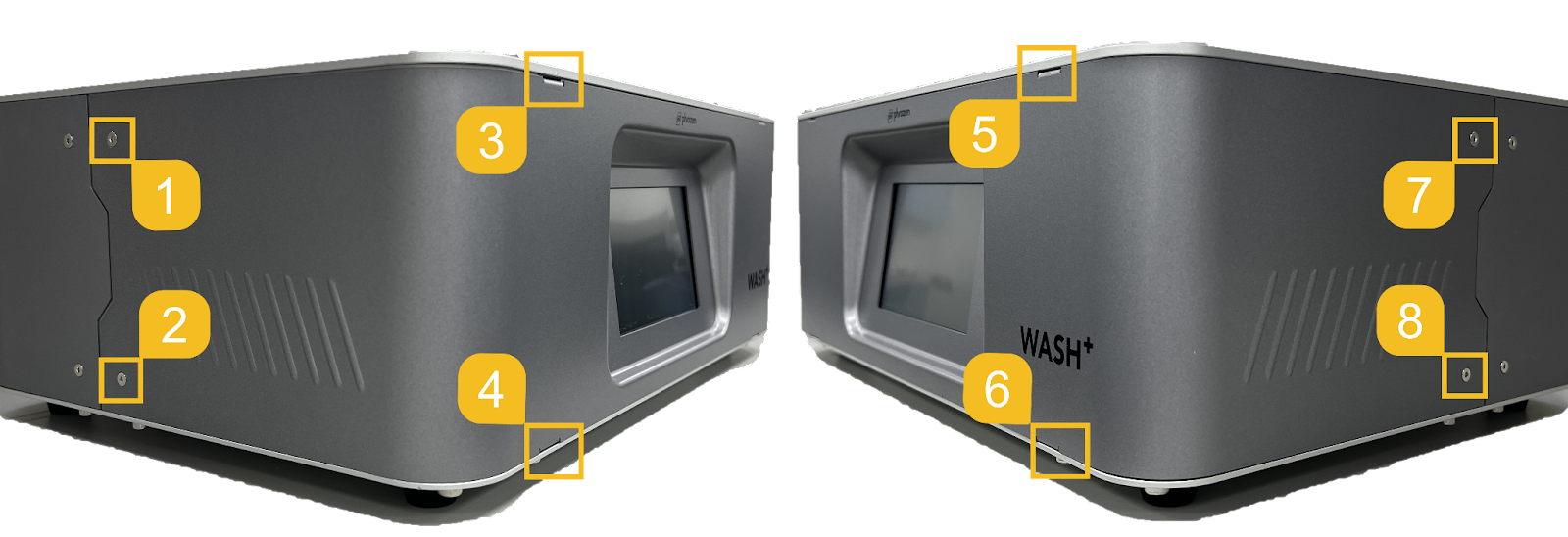

Use an Allen Wrench (Sizes 2, 2.5, and 3) to loosen 8 screws and open the front case.
Disconnect the Touch Panel Cable and Remove the Front Case to set it aside.

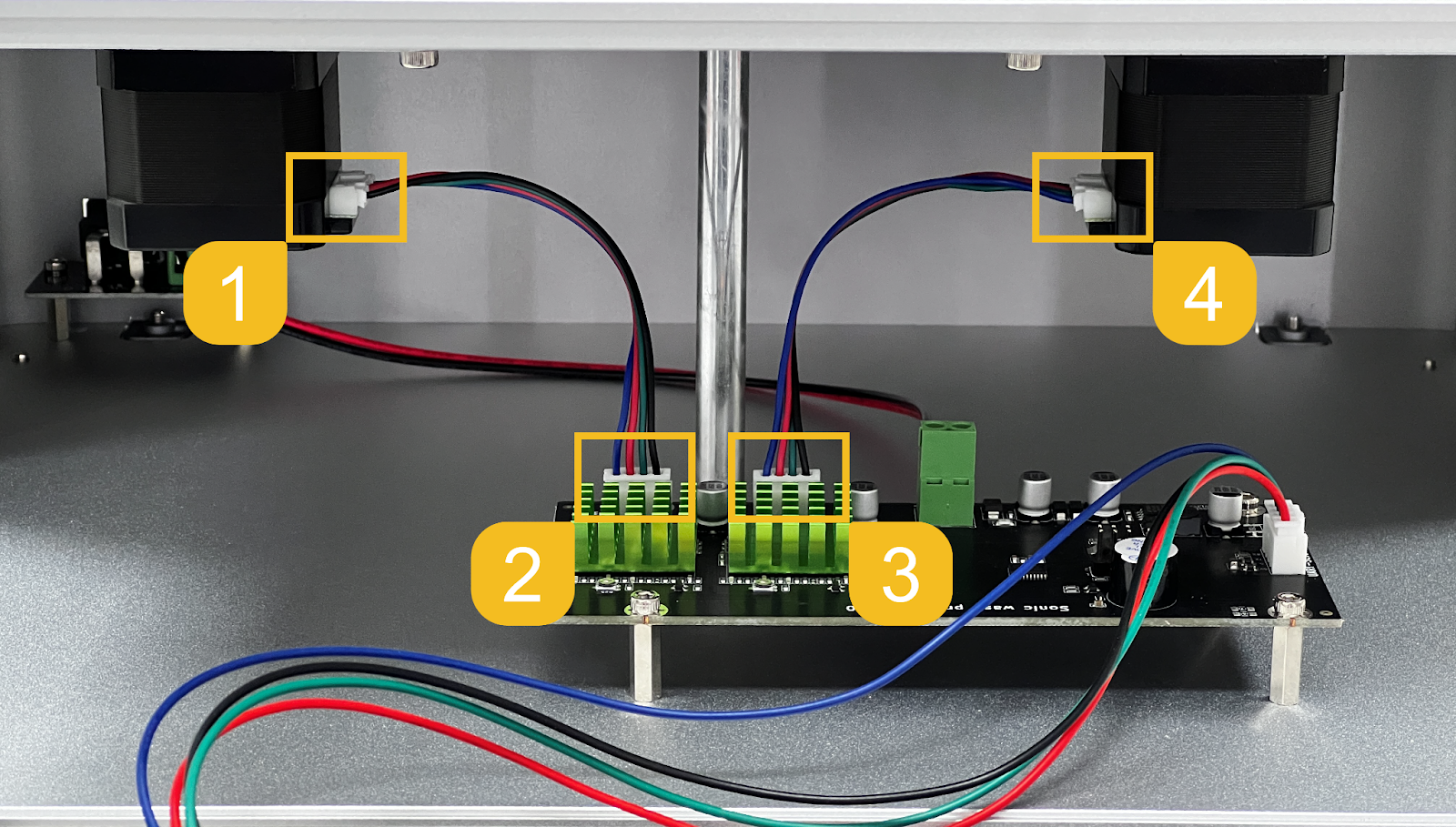

Disconnect the Motor Cable Connection(s).
Loosen the 4 screws securing the Mainboard.
Lift the Mainboard and disconnect the power wires using a slotted driver.
Replace the Mainboard and reconnect the power wires onto the mainboard.
Place the mainboard back and secure the 4 screws on the corner.
Connect the motor cables and the touch panel cable to the mainboard.
Tighten the front case by securing all the 8 screws previously removed.
Done, you are ready to use the Wash Station.
