⚠️Note: Disconnect the power source before disassembling electrical equipment. |
- Turn off the printer.
- Remove the power cord

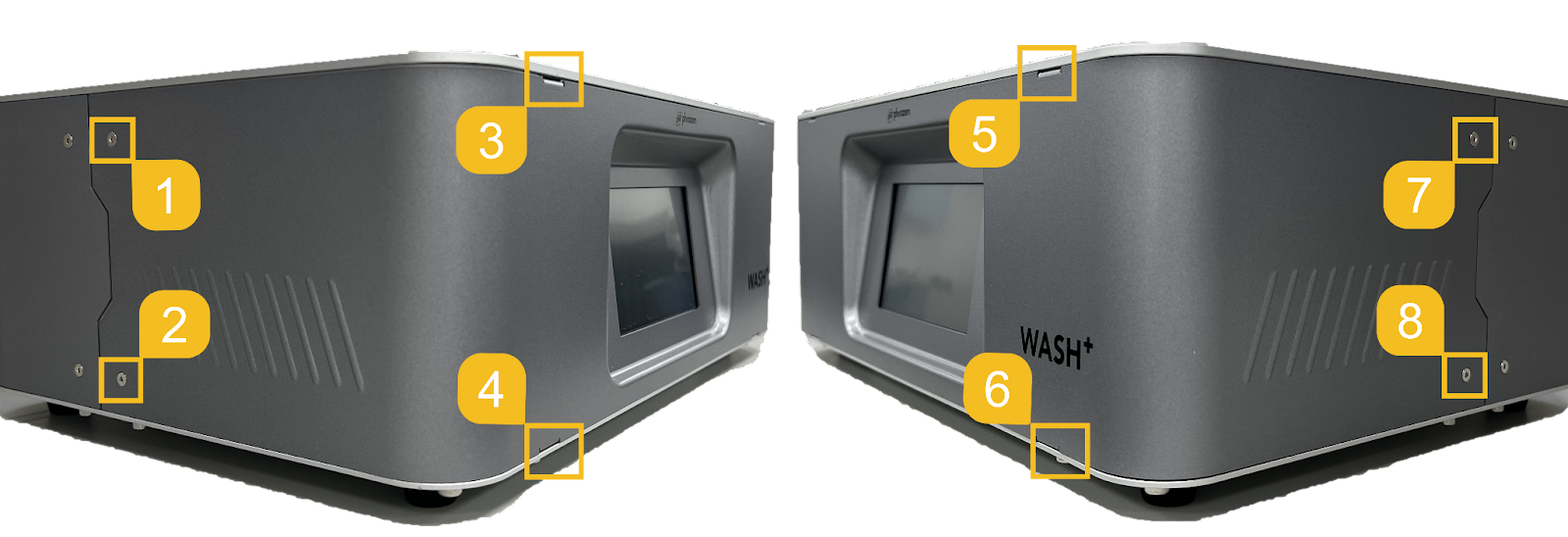

- Use an Allen Wrench (Sizes 2, 2.5, and 3) to loosen 8 screws and open the front case.

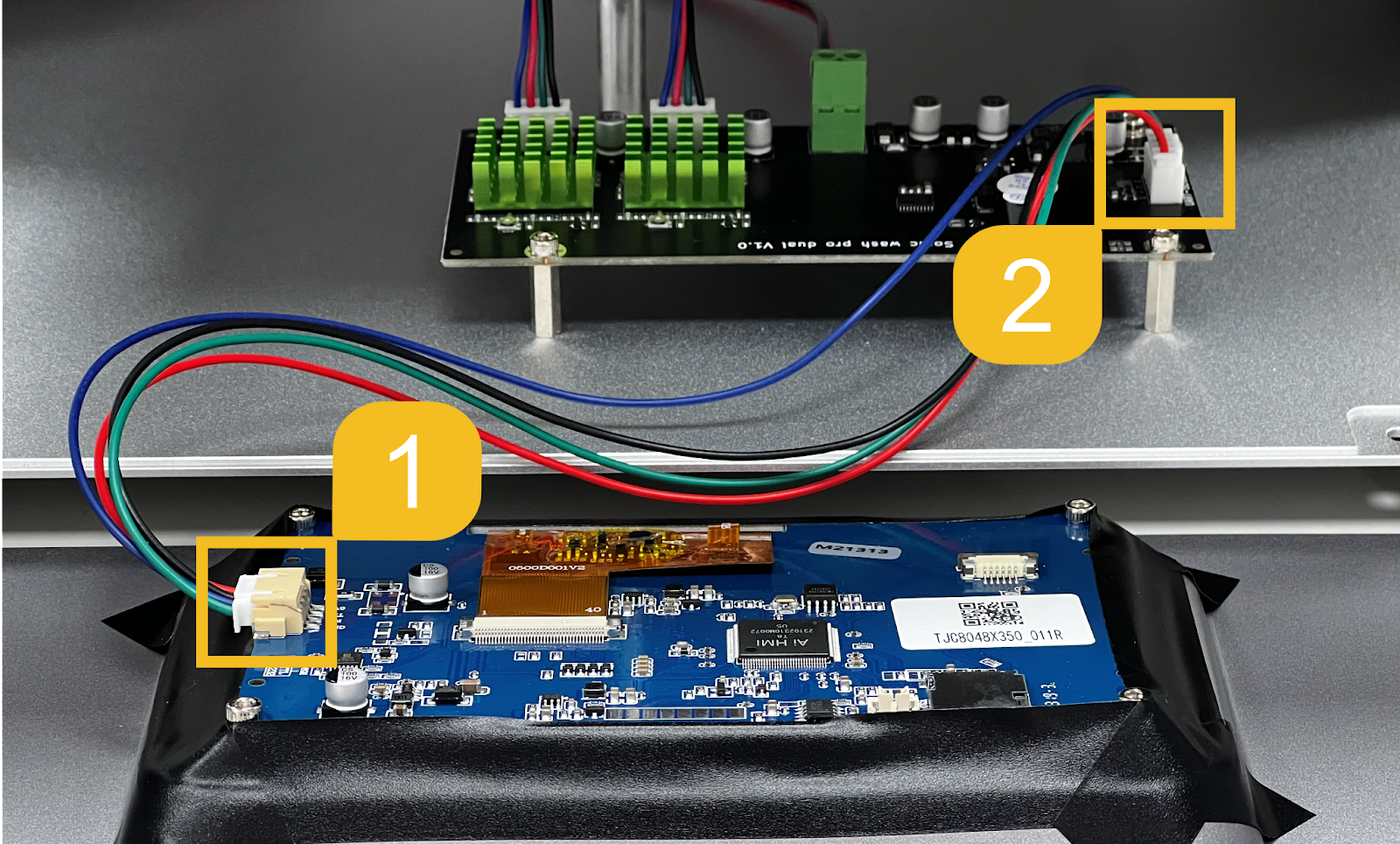

- Verify & reconnect the touch panel cable.
|

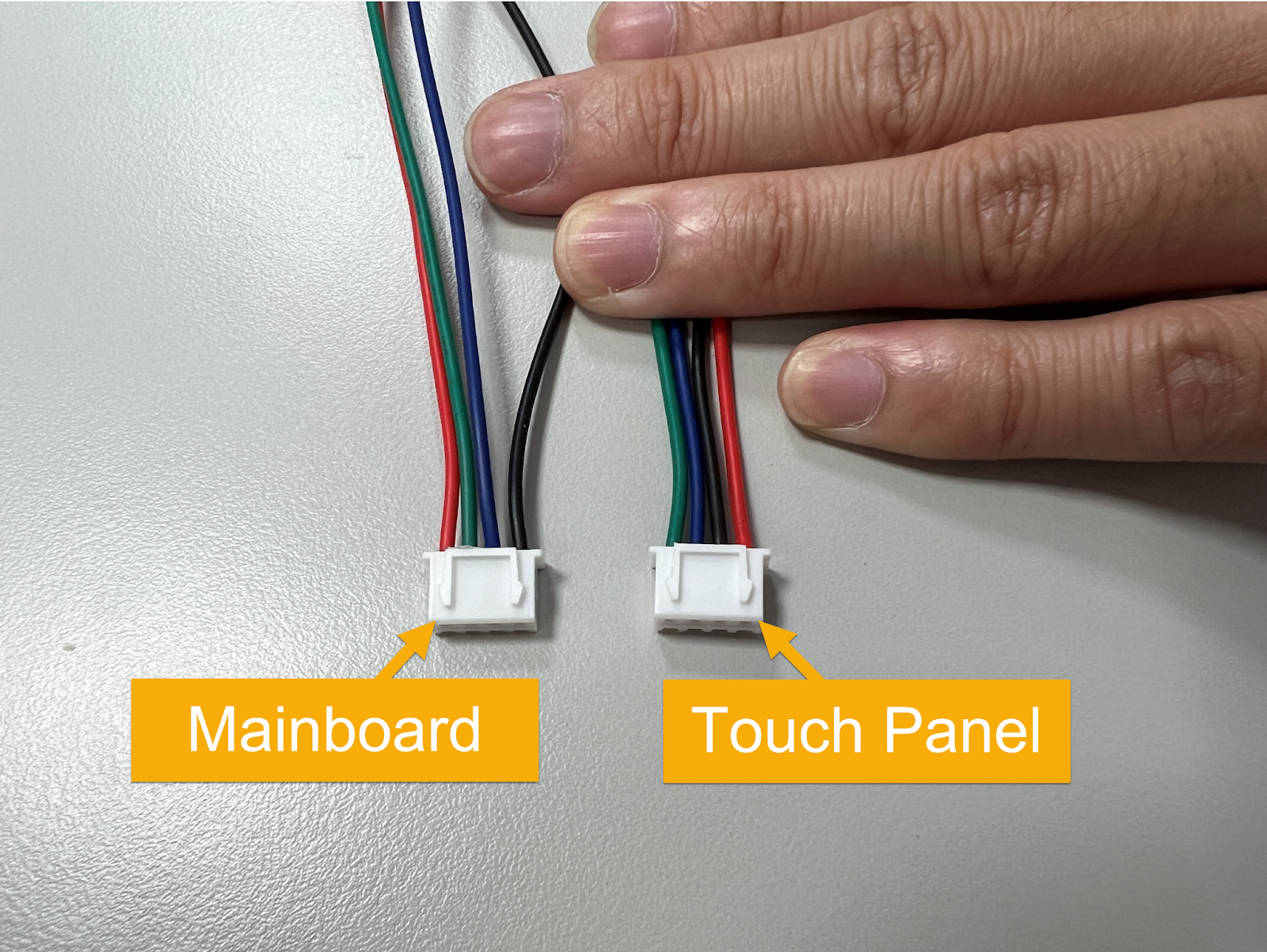

⚠️Note: Please refer to the picture below to connect the cable to the correct terminals. Figure 1-15: Verify & Reconnect the Touch Panel Cable |
5. Insert the power cord and power on the unit.
6. Perform the unit and check if the motor works correctly.
