⚠️Note: Disconnect the power source before disassembling electrical equipment. |
- Turn off the printer.
- Remove the power cord

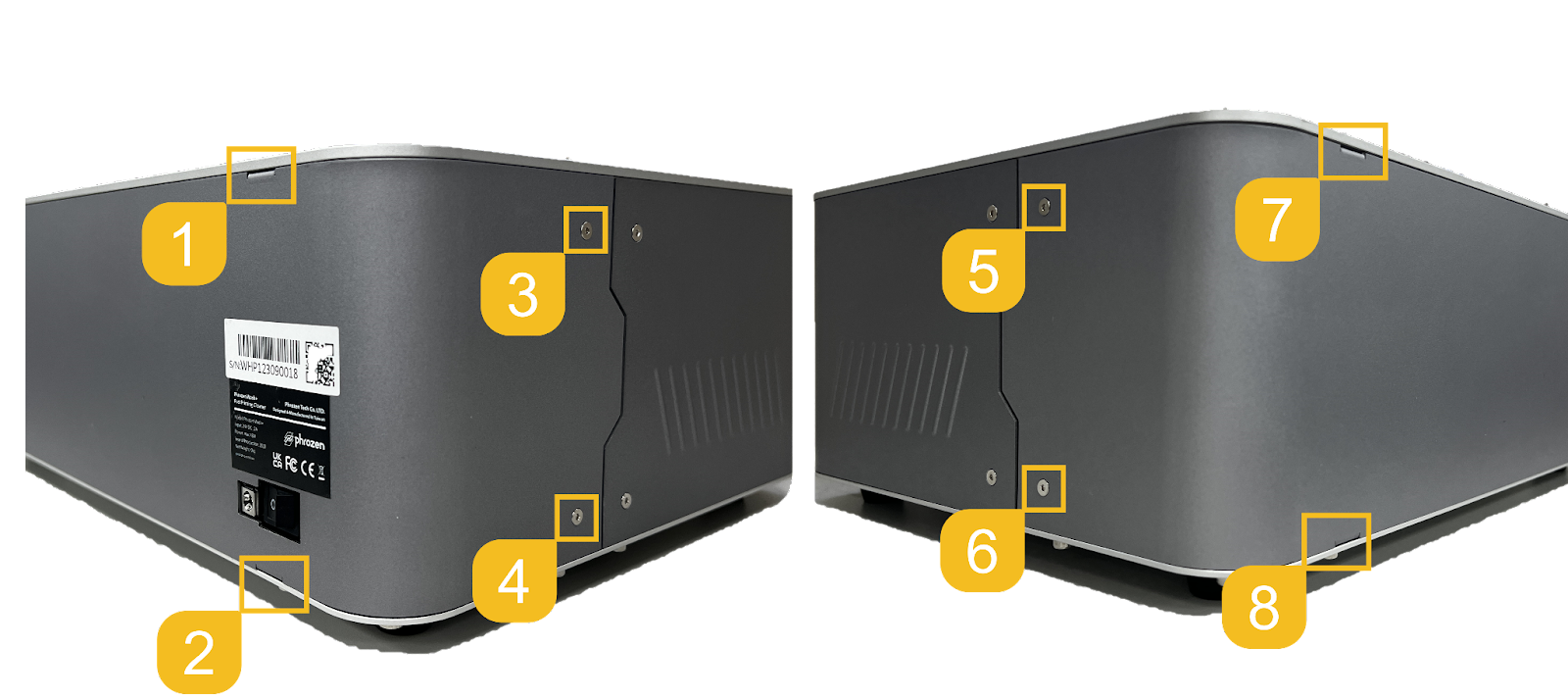

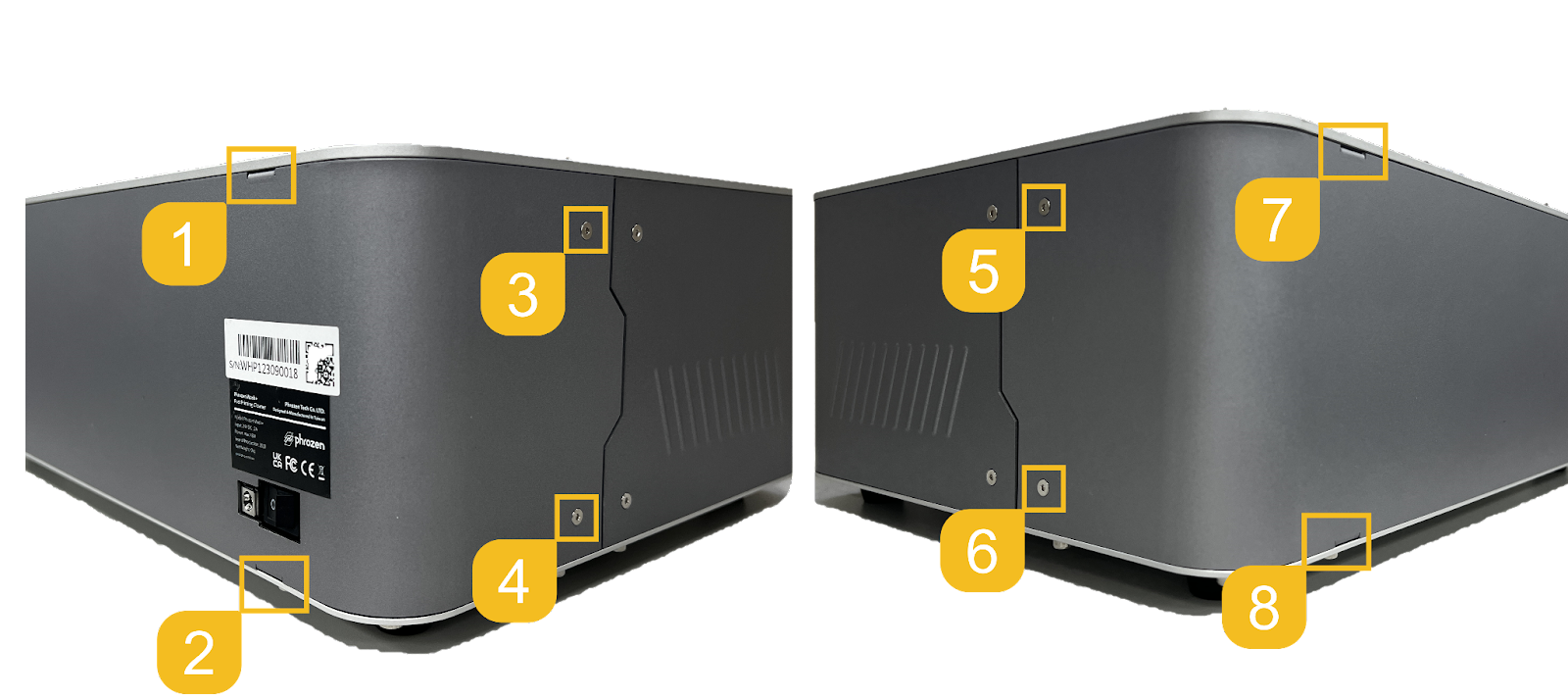

- Use an Allen Wrench (Sizes 2, 2.5, and 3) to loosen 8 screws and open the rear case.

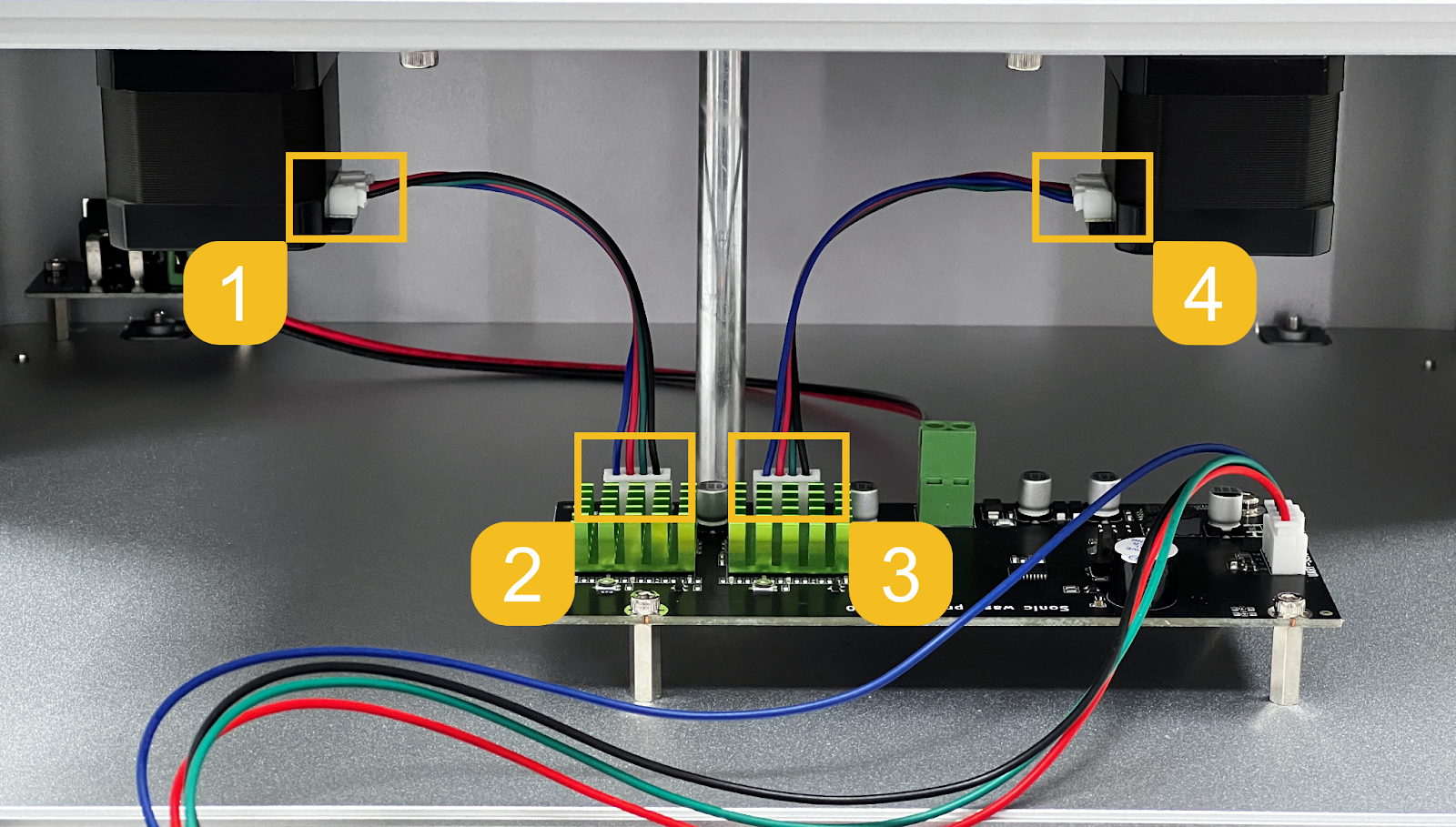

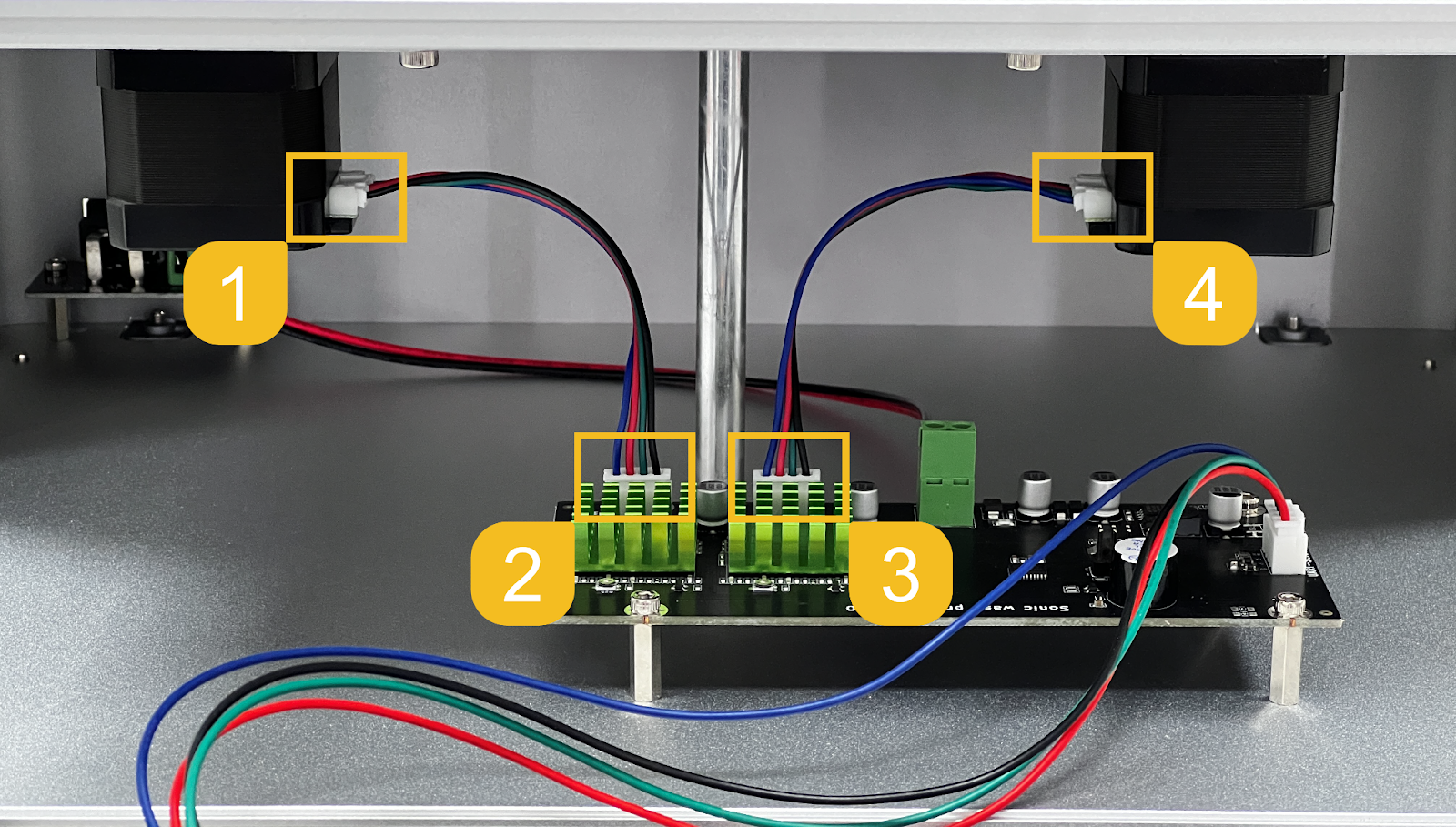

- Verify & reconnect the motor cables.
- Insert the power cord and power on the unit.
- Perform the unit and check if the motor works correctly.
