[Wash+] Checking the Switch Board

January 10, 2024 02:32
Updated

⚠️Note:

Disconnect the power source before disassembling electrical equipment.
When handling plugged-in equipment, ensure your hands are dry and, when possible, wear insulated gloves, protective clothing, and shoes with insulated soles.

Turn off the printer.
Remove the power cord.

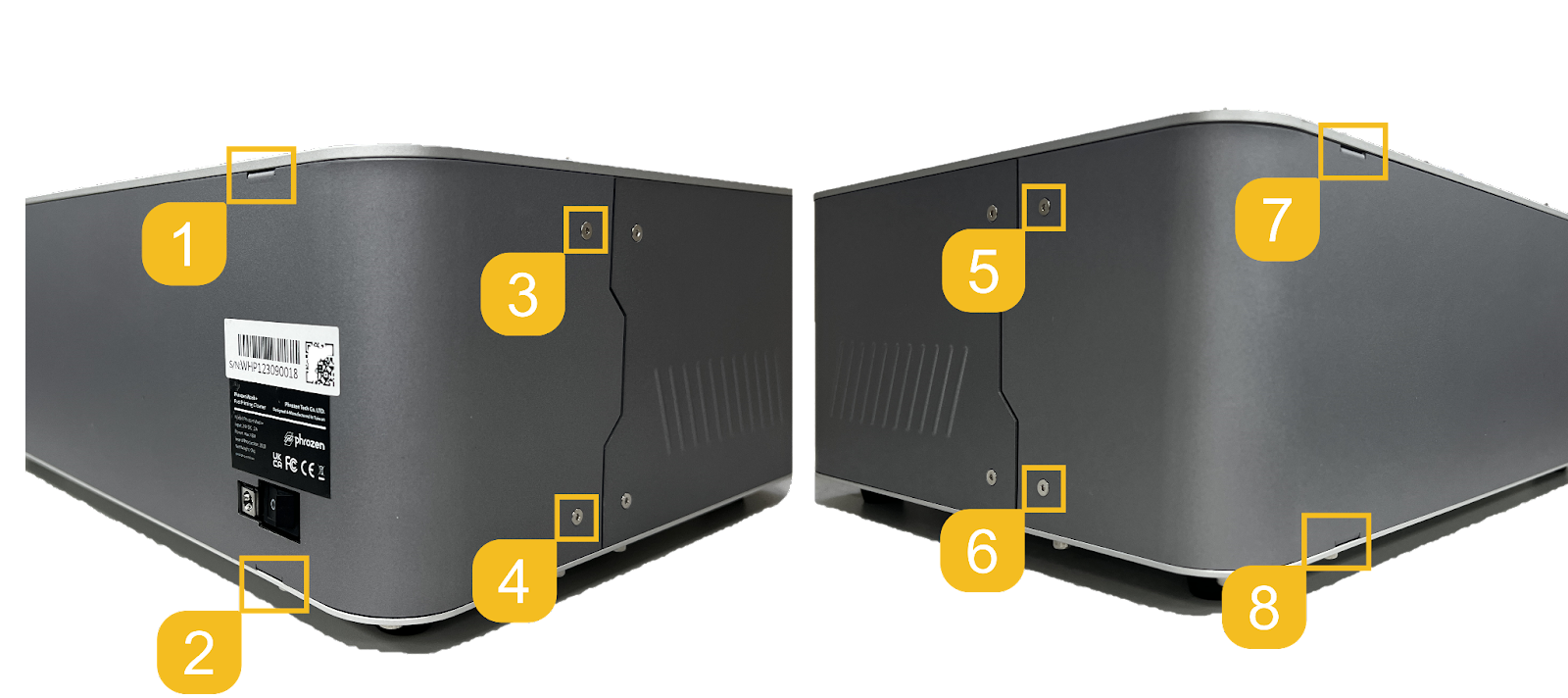

Use an Allen Wrench (Sizes 2, 2.5, and 3) to loosen 8 screws and open the rear case.

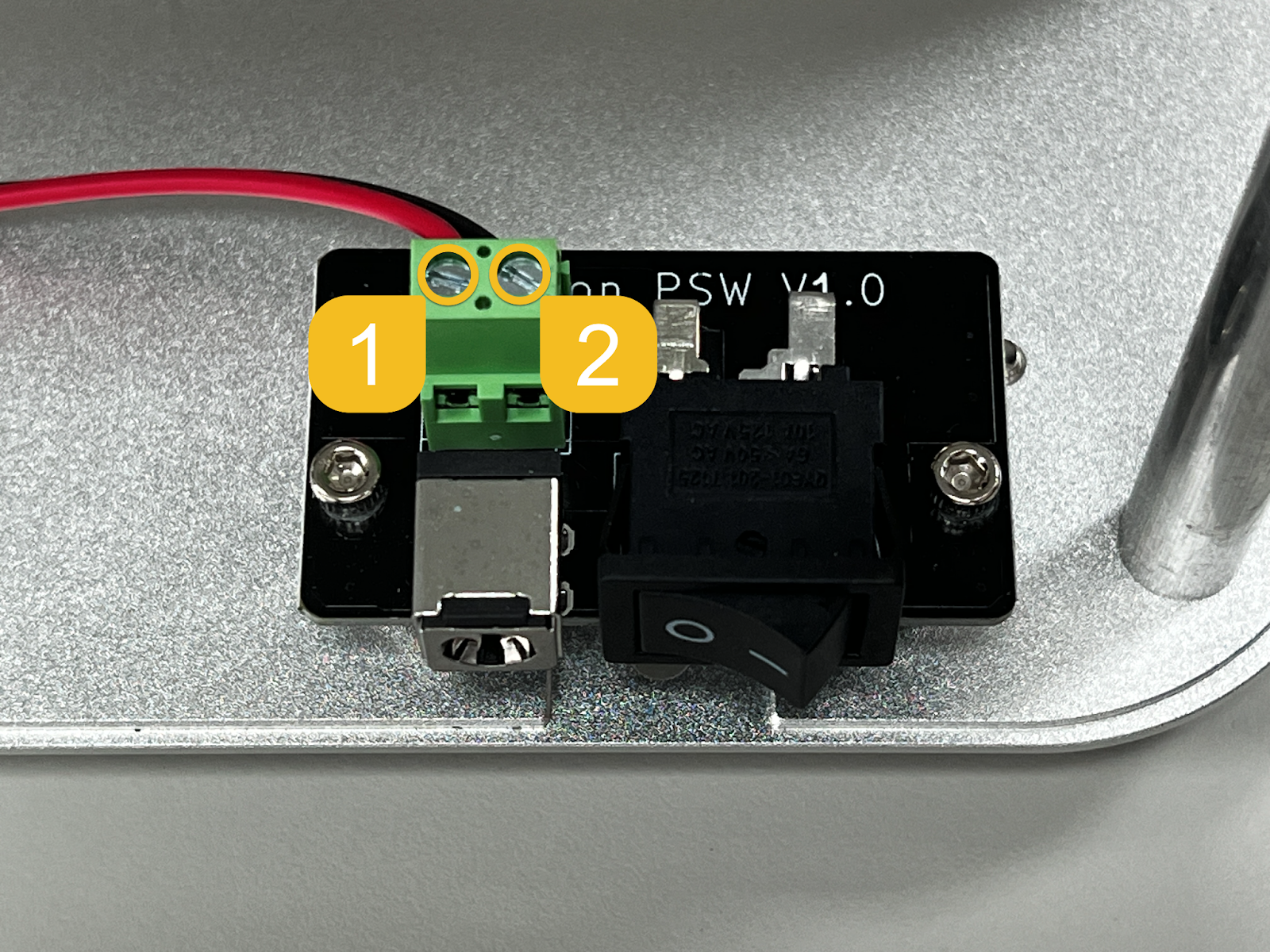

Use a slotted screwdriver to disconnect the power wires on the switchboard.
Prepare a digital multimeter and turn it to DC range.
Insert the power cord and power on the unit.

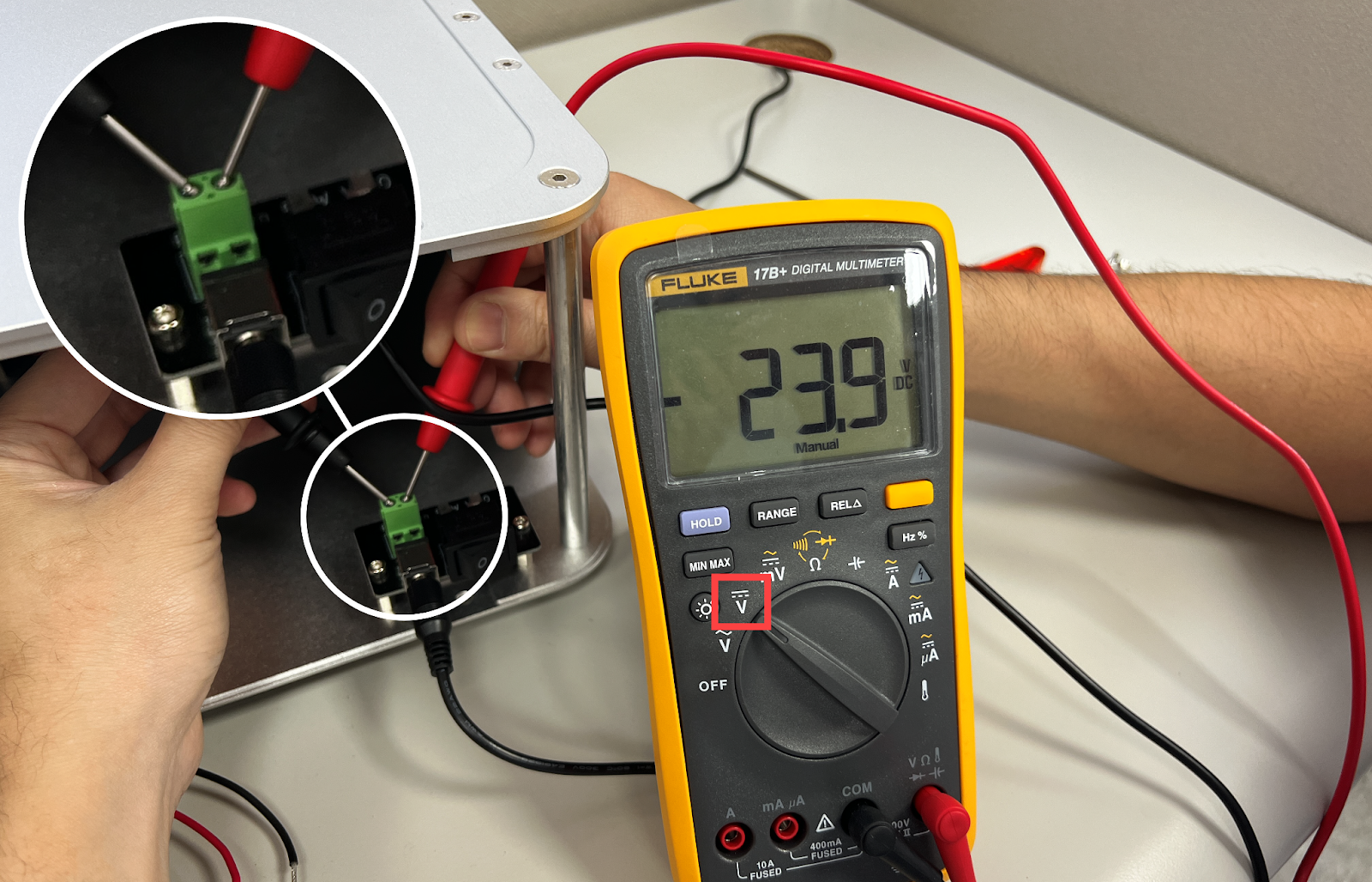

Measure the output on the switchboard and check it if reaches 24V(±3%).

For a detailed demonstration of the checking process, please refer to the instructional video.
