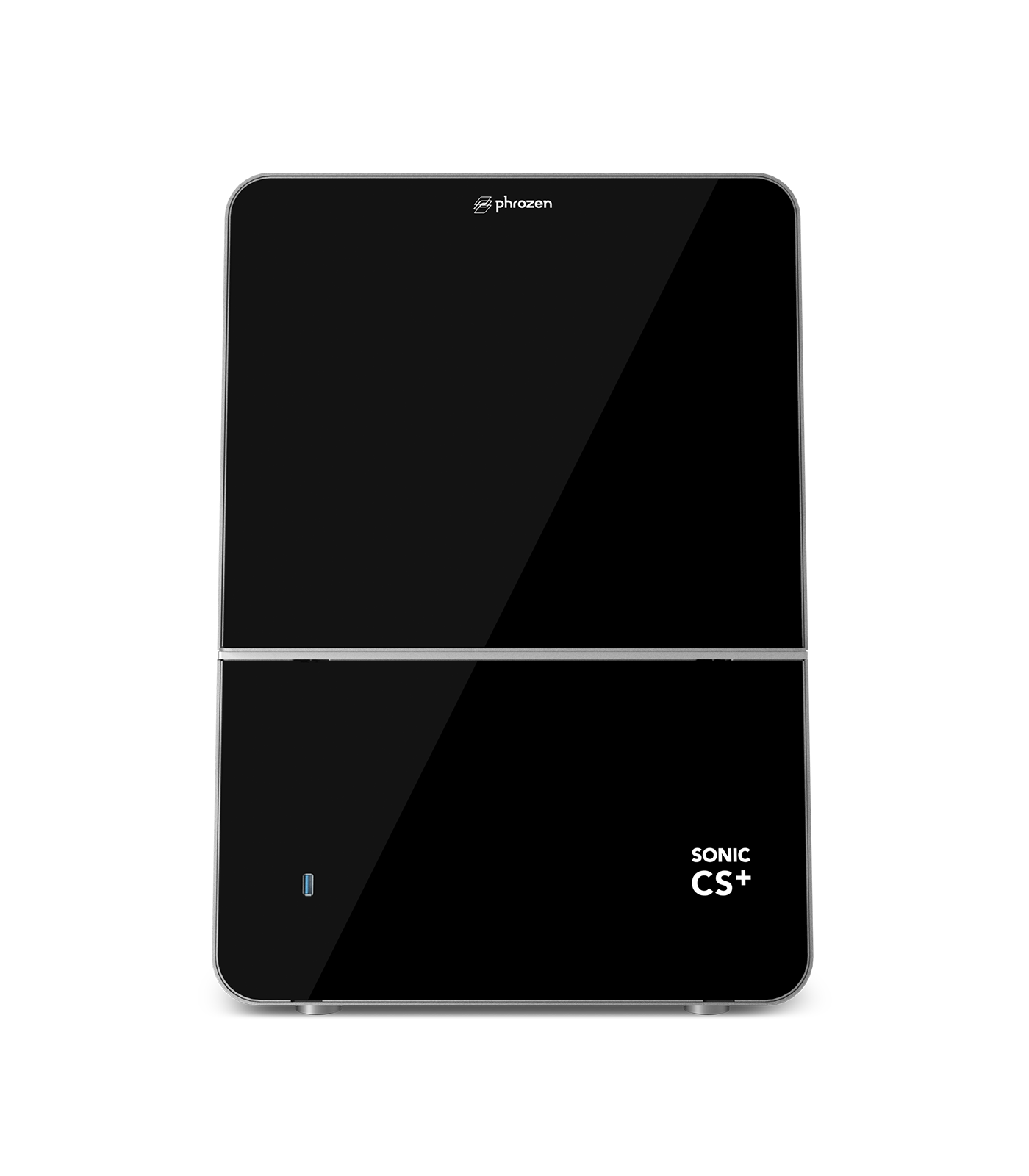

About Sonic CS+
Released in 2025, the Sonic CS+ features a 385 nm monochrome LCD delivering high precision and stable performance for consistent chairside results. With a dual-heating system and reliable print accuracy, it meets the demands of modern dental clinics and streamlines the production of patient-ready dental appliances in under 45 minutes.
Key Features:
- 10 Minutes From the Box to Printing: With a fully pre-validated workflow, an intuitive step-by-step tutorial, and user-friendly hardware, the CS+ is designed to help dental professionals start printing in as little as 10 minutes of unboxing.
- Anatomically Accurate, Precise, and Detail: The powerful 385 nm UV light source provides highly concentrated light penetration for each layer, resulting in more precise and dimensionally accurate dental appliances. The 22 µm XY resolution —the highest among professional dental 3D printers— ensures every printed dental appliance is aesthetically sharper and more detailed.
- Print to Patient in as Little as 45 Minutes: Fabricate high-quality dental appliances like permanent/temp ceramic-filled restorations, occlusal splints, surgical guides, and implant analog models in as little as 45 minutes. Paired with its high accuracy, Sonic CS+ is made to deliver high-quality, same-day dentistry on repeat.
- Clinic-Friendly Design: Features include a fully covered construction to prevent resin splashes, a built-in air purifier system to reduce resin odor during printing, a slide & lock resin vat design eliminating the need for manual screwing, and a 7" wide touch screen for easy navigation.
- Integrated Dual Heating System: Equipped with a built-in chamber and VAT heating system to ensure consistent print quality.
Specifications
| Specification | Details |
| Printing Technology | LCD |
| Wavelength | 385 nm |
| Resolution | 22 µm |
| Print Volume |
Std: 350 mL capacity Mini: 150 mL capacity |
| Print Speed | Up to 100 mm/hr |
| Layer Height Options | 30, 50, 100µm |
| Machine size (cm) | 36 x 38 x 55 |
| Touch Screen | 7" Capacitive Touch Panel |
| Connectivity | USB, Wi-Fi, Ethernet |
| Operating Temperature Range | 25±5°C |

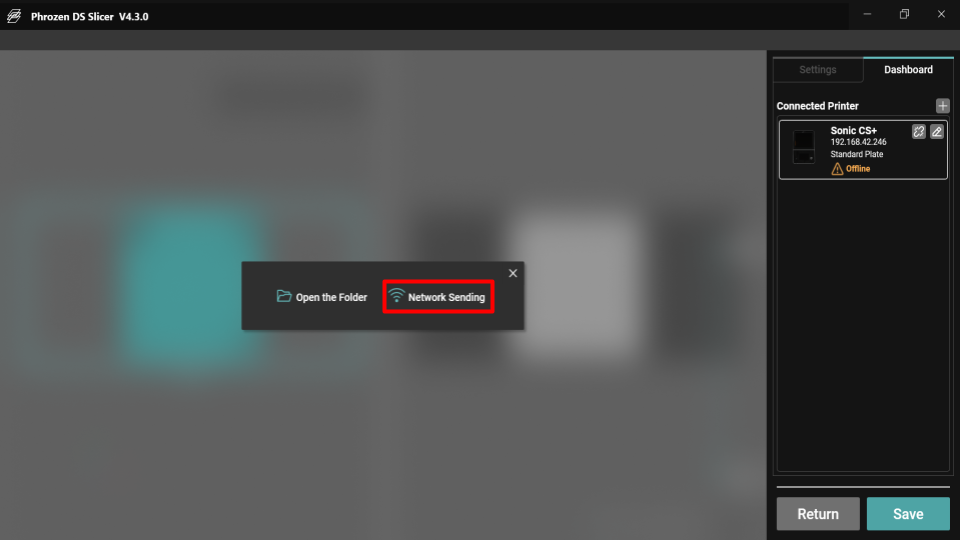

Remote printing

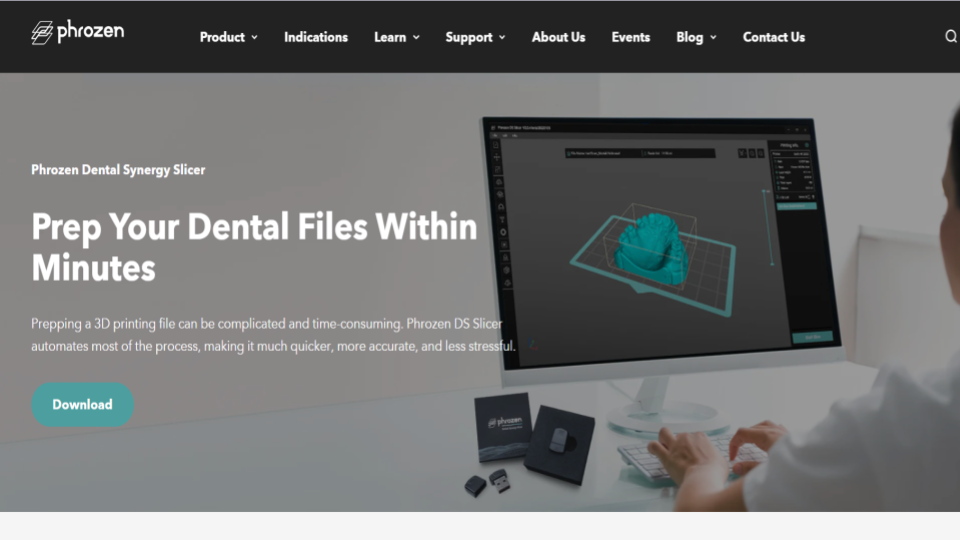

Download DS Slicer from the official Phrozen Dental website.
Plug in the DS Slicer license dongle.

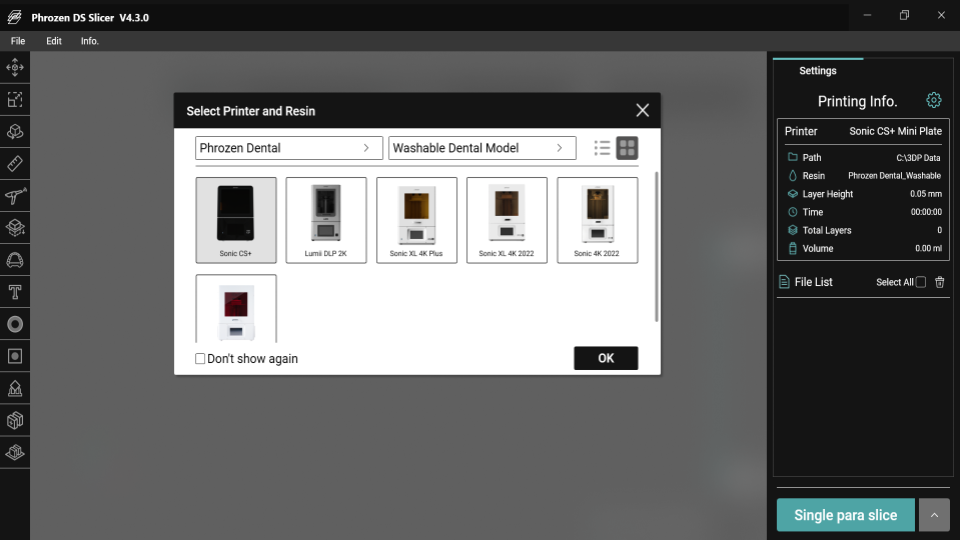

Launch the slicing software and select Sonic CS+ as your printer.

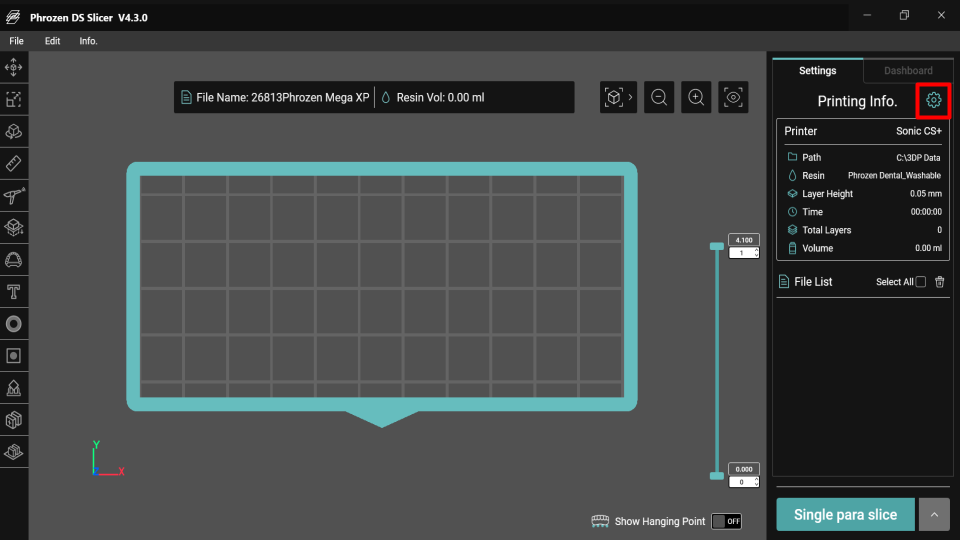

Click the gear icon at the top right to access the settings page and change the build platform if needed.

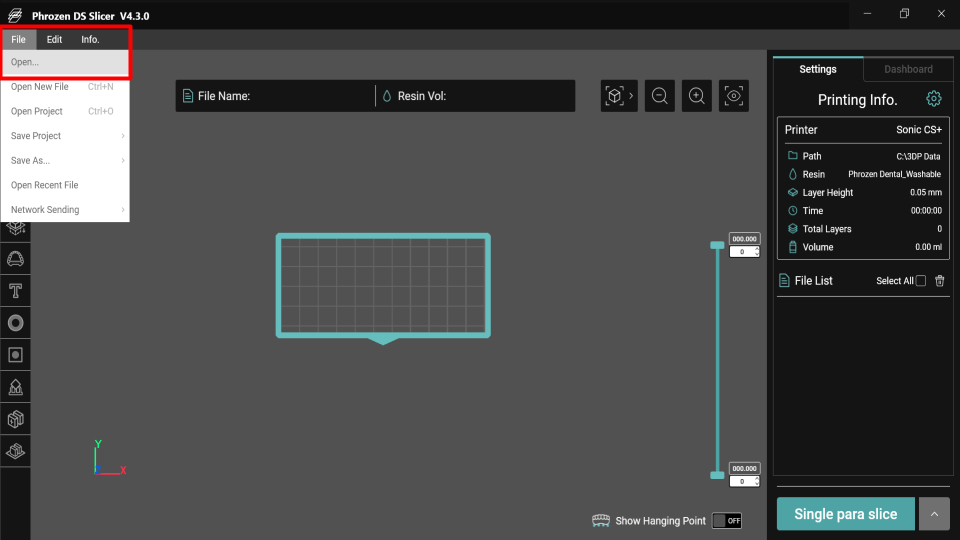

Open the file you wish to print.

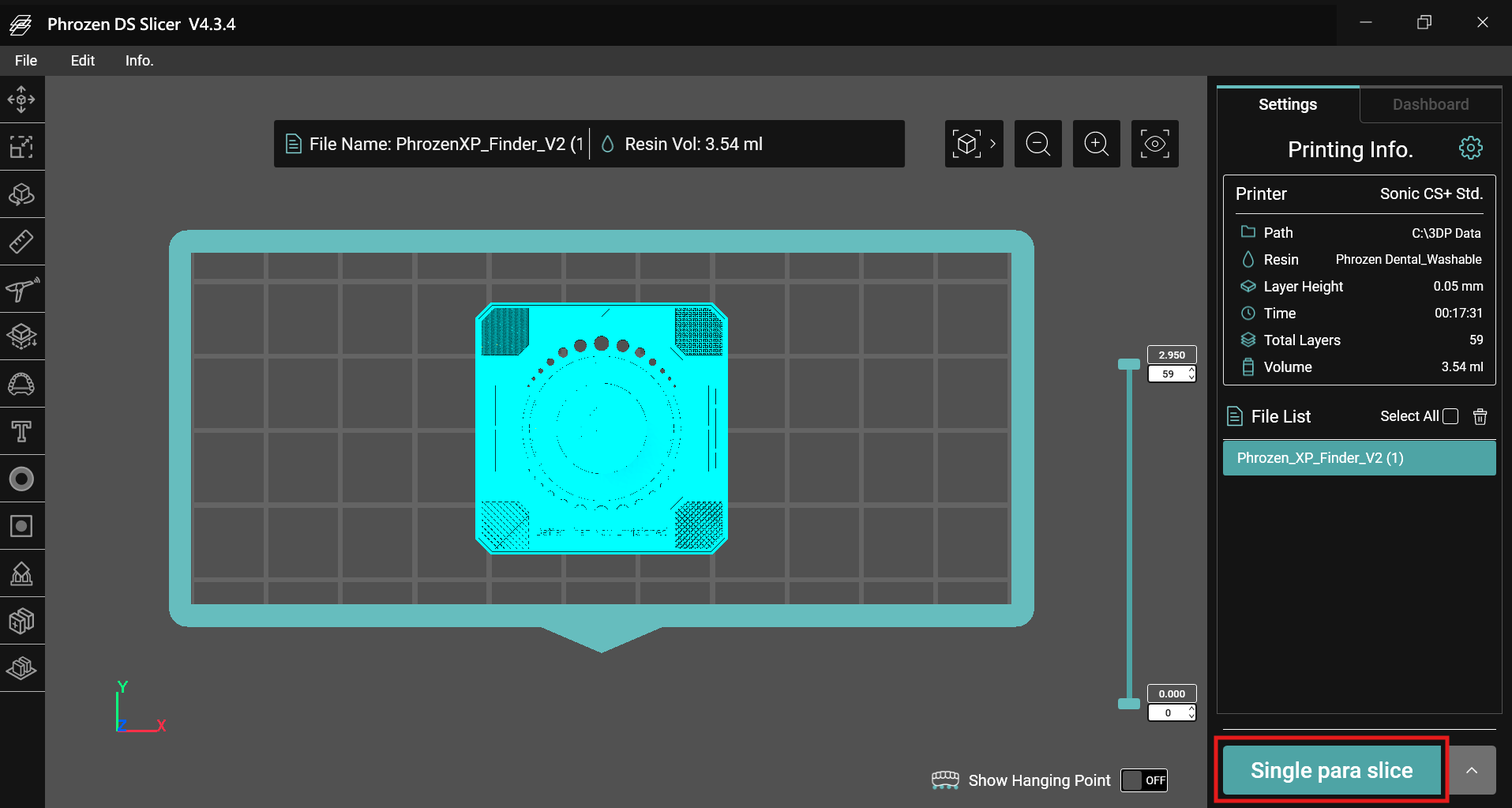

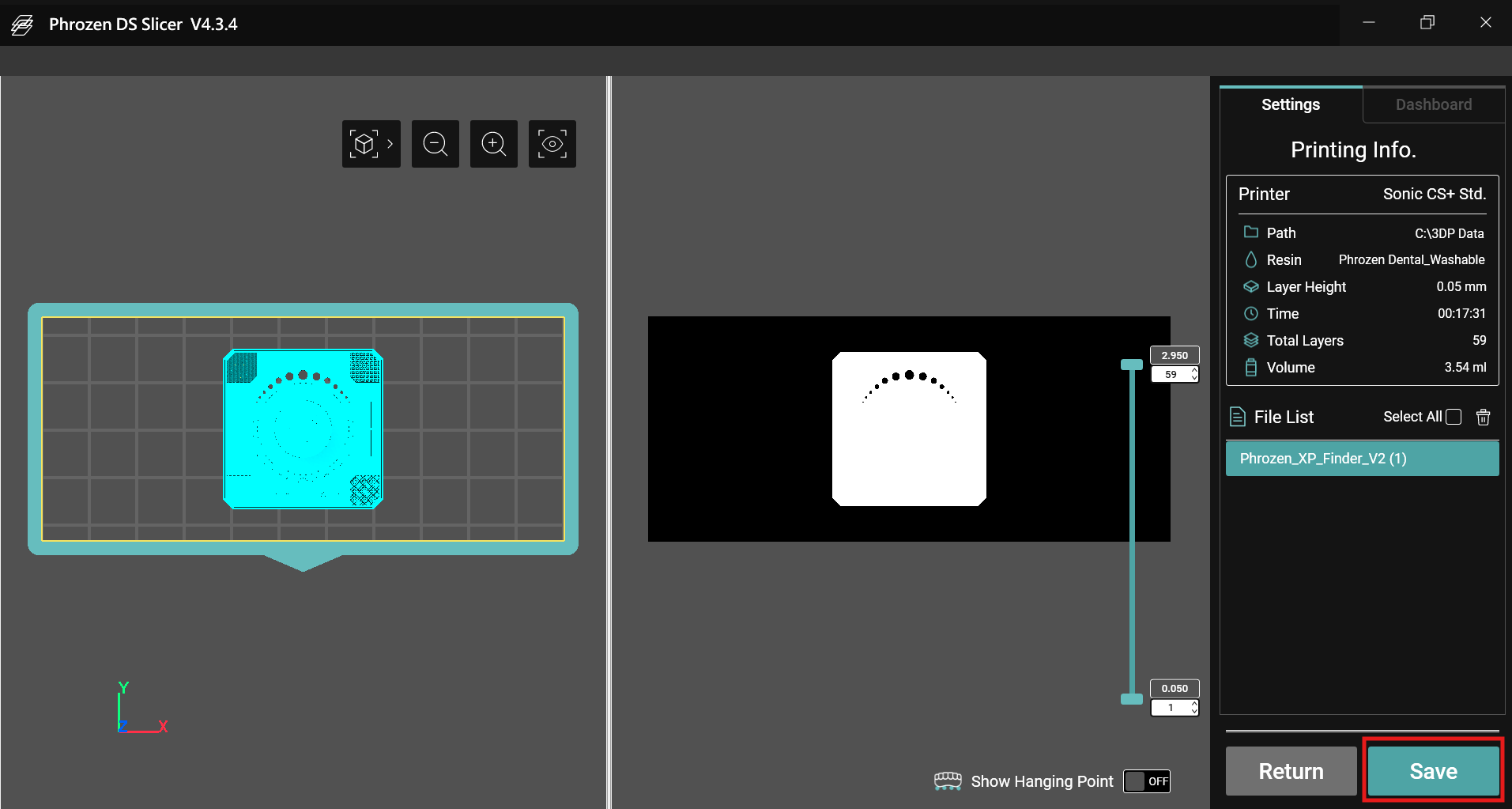

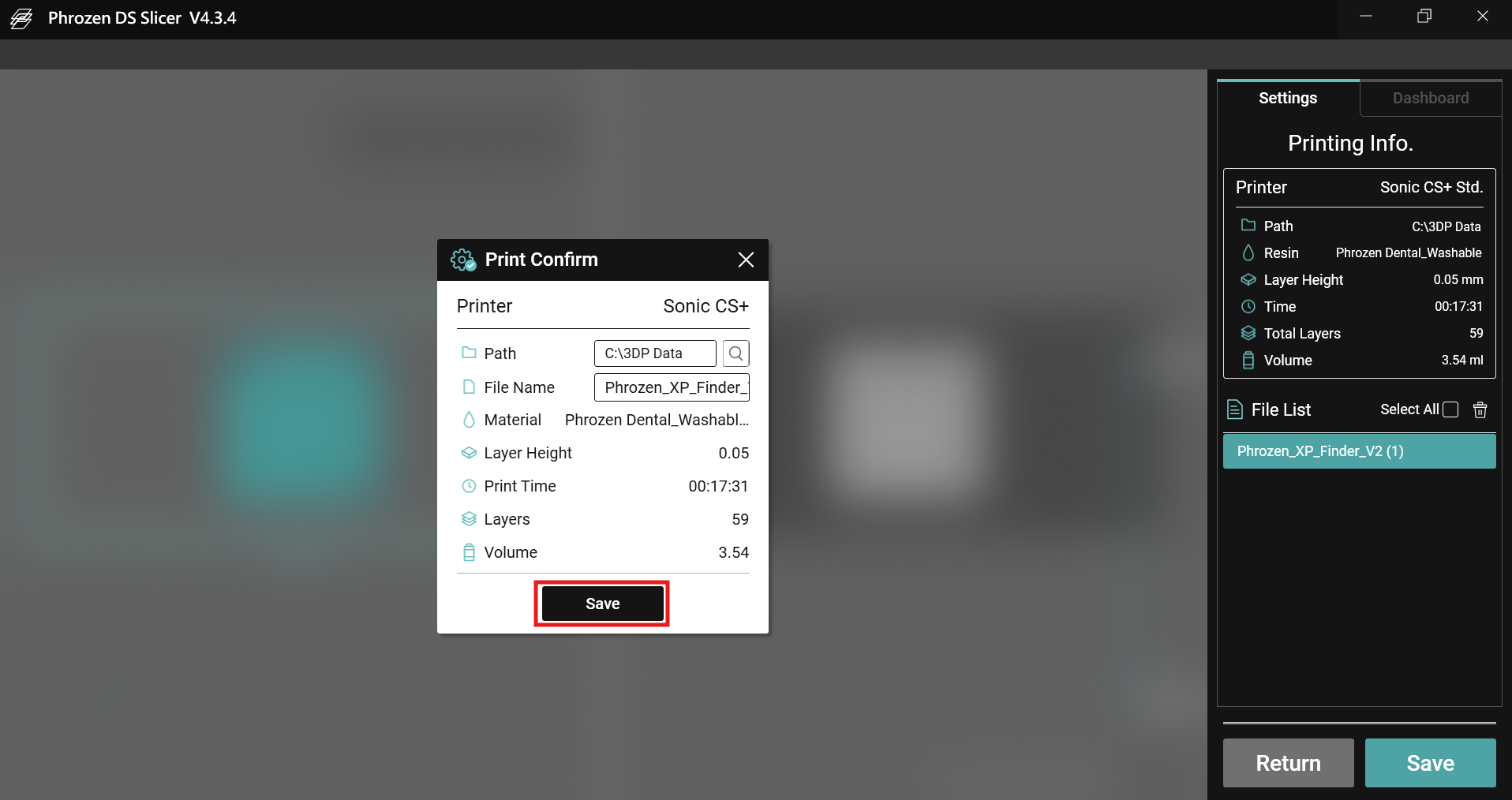

Slice the model and save the sliced file.
If you encounter any machine connection issues, kindly refer to this article for assistance.
Need Help?
If you need any assistance, please feel free to reach out to Phrozen Dental Support or your authorized resellers. We are always happy to support you.
