[Sonic 4K] Checking the Z-axis and Motor

Cleaning the Z-axis

If you're experiencing issues with your Z-axis, start by checking the lead screw for dirt or debris. If it's dirty or has accumulated grease, use a microfiber cloth to wipe it clean. You can also use alcohol for deeper cleaning. After cleaning, consider lubricating the lead screw. For more detailed instructions, please refer to [Sonic 4K] Cleaning the Z-axis

If the Z-axis is still unable to move after cleaning, proceed to the next steps

Reconnect the motor connectors

Checking the motor cable connection on your Sonic 4K is an important step in ensuring that your device is working properly. If the motor cable becomes disconnected, it can cause your printer stop working altogether. To check the motor cable connection, follow these steps:

1. Turn off your printer and unplug it from the power source

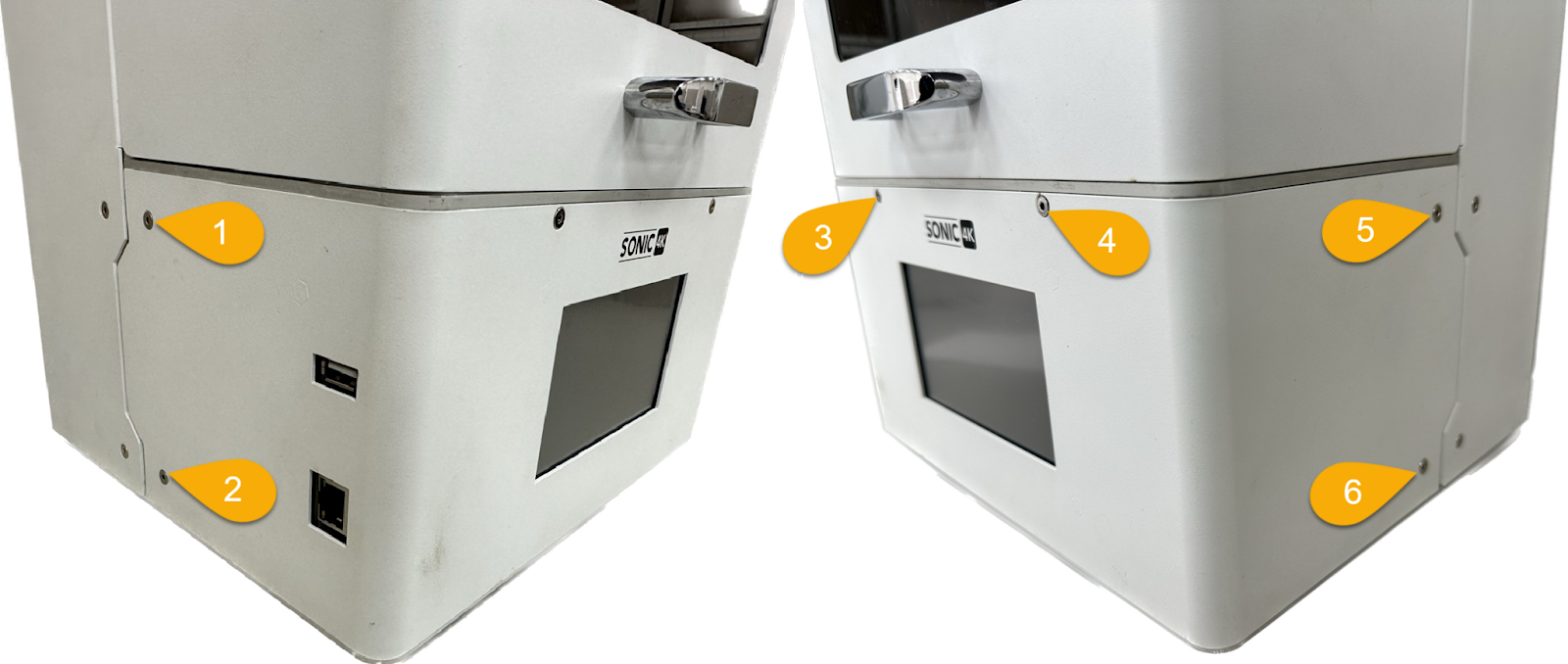

2. Remove the front case by loosening the 6 screws

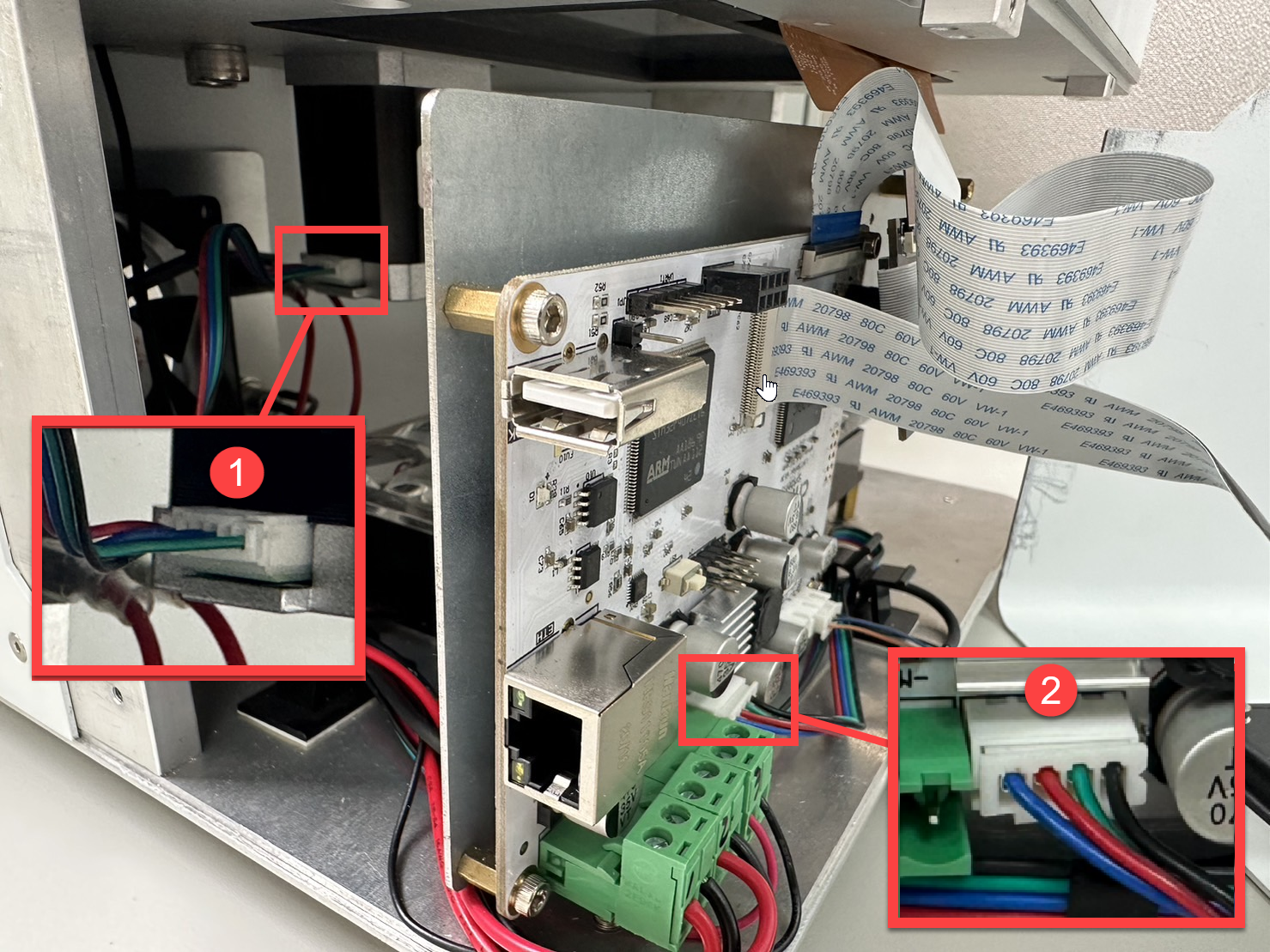

3. Locate both ends of the motor connector (as shown below)

4. Check that both ends of the motor cable are securely connected. If either end is loose, gently push it back into place
5. Plug your Sonic 4K back into the power source and turn it on
6. Test the Z-axis to make sure it is working properly

Check the motor by turning the Z-axis by hand

If you experience a situation where the Z-axis becomes stuck during printing or if you hear a grinding noise from the motor, it may indicate a problem with the Z-axis mechanism. This issue is often caused by the buildup of dirt, dust, or resin on the Z-axis or even resin that has seeped into the motor, preventing it from moving smoothly.

To check if the motor is working properly, follow the steps below:

1. Turn off the printer
2. Remove the building plate and resin vat

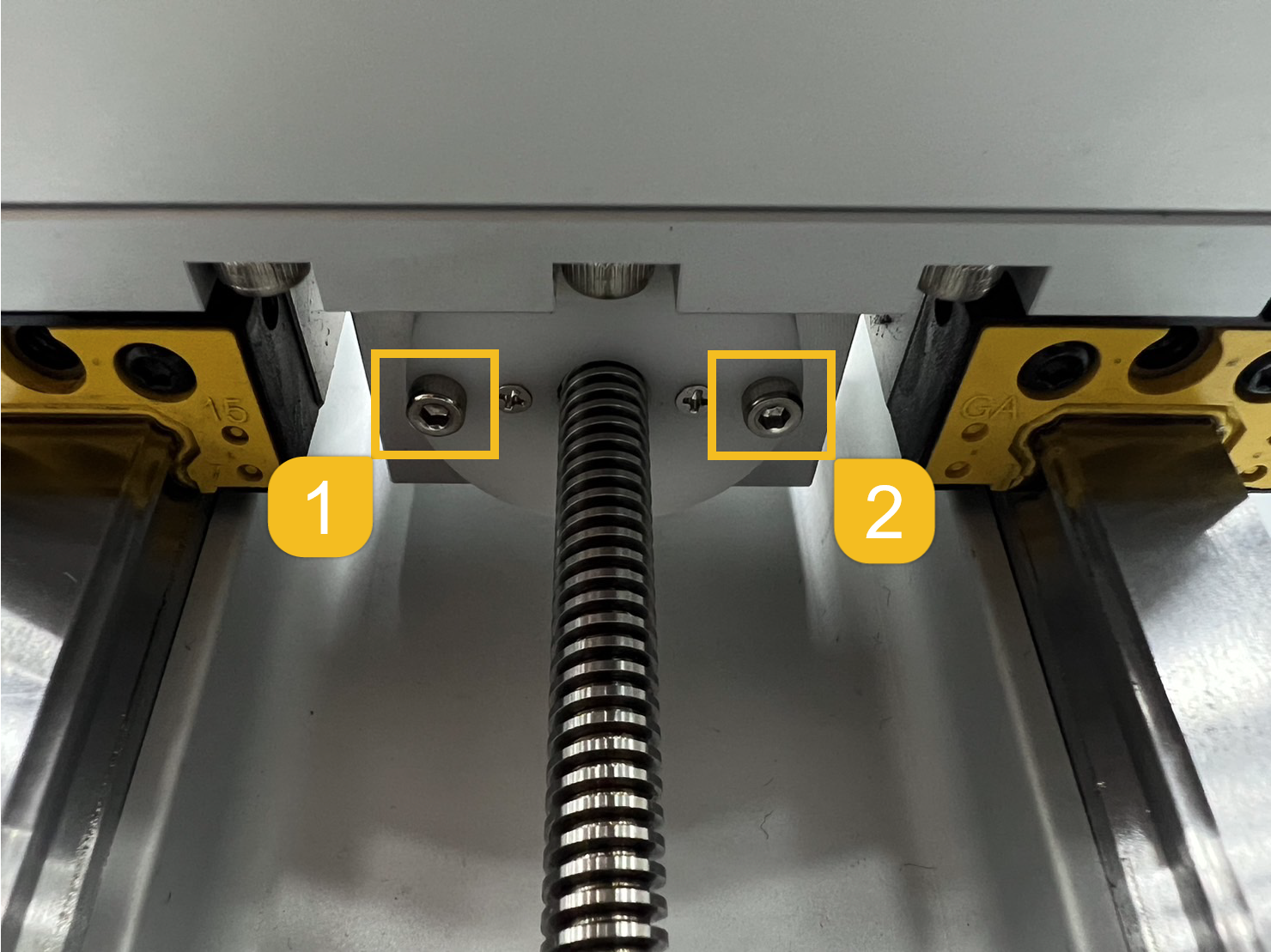

3. Slightly loosen the 2 screws of the bearing sleeve located under the T-plate (as shown in the picture below)

4. Turn the lead screw by hand clockwise and counterclockwise and check if the lead screw turns freely without any jamming

5. If the lead screw does not move smoothly, clean the Z-axis and apply lubricants to it
6. If the lead screw is stuck and cannot be turned by hand, it may be due to resin seeping into the motor and causing it to become trapped.

Note: Regular maintenance of the Z-axis and lubrication can prevent this issue from occurring. For more information, check out [Sonic 4K] Cleaning the Z-axis

Contact Support

By following these steps, you can easily check the Z-axis on your device and determine whether they need to be repaired or replaced.

If the issue persists after attempting the above steps, please contact Phrozen support or your authorized reseller for assistance.
