[Sonic XL 4K] How to connect & set up resin profiles

Connect Sonic XL 4K to Phrozen OS Interface

On the Printer

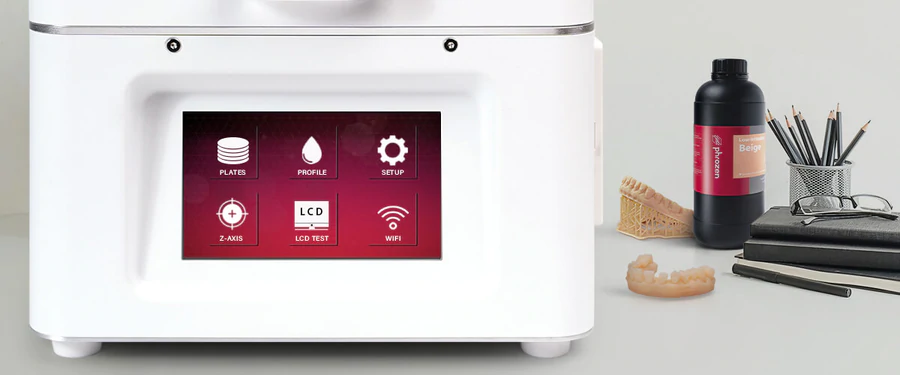

1) On the printer’s touch panel, select the WIFI button. Then make sure to connect to the same WiFi network as your computer or smartphone, or whichever device you intend to use to transfer over your files to the 3D printer. Type in your password, then click on CONNECT.

2) Once the Sonic XL 4K has successfully connected to the WiFi network, the IP address will be shown on top of the touch panel.

On the Computer or Smartphone

1) Open your web browser on your computer or smartphone, and type in the IP address as shown on the resin 3D printer.

2) You have now successfully entered Phrozen OS Interface! Now, you can start organizing your 3D files and resin profile settings!

Ensure that your device is connected directly to the router. Mesh WiFi and WiFi extenders are not compatible.

Adjust Resin Profiles via Phrozen OS Interface on Sonic XL 4K

Via WiFi

1) Once you have entered Phrozen OS Interface, click on PROFILE on the top right corner of the page.

2) Add, adjust, or choose the resin profiles, according to your needs.

Make sure that the layer height has been set the same way as it was in the slicer software. The LCD 3D printer will not read other settings from the slicer, except for layer height and anti-aliasing.

Please click here to find out how you can import your files to the Sonic XL 4K.
