[Sonic XL 4K 2022] How to run the LCD Test

Before printing, you may need to check the status of your Sonic XL 4K 2022’s LCD screen. This is to ensure that both the UV lights and the Mono-LCD screen are functioning properly. We will guide you through the steps of performing an LCD test and how you can read it:
There are 3 modes to choose from. Make sure to test your LCD screen in the following order:

1. LIGHT UP ENTIRE LCD SCREEN

2. BLACKENED LCD SCREEN

3. LCD GRID

DO NOT look directly at the UV light to prevent eye discomfort.

MODE 1: LIGHT UP THE ENTIRE LCD SCREEN

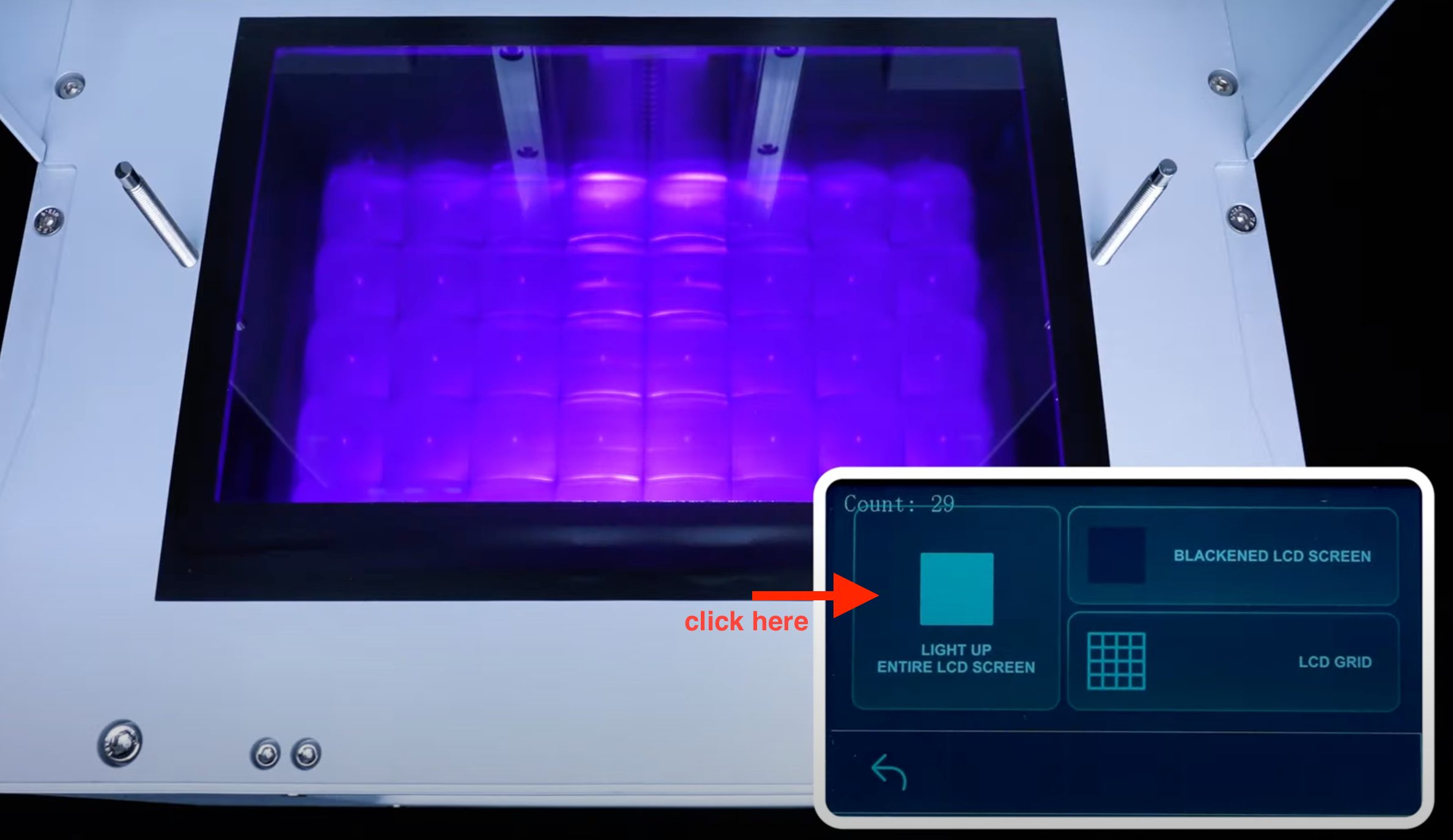

On the touch panel, click on LCD TEST, then click on LIGHT UP ENTIRE LCD SCREEN

The LCD screen should be lit up completely. This is to make sure that the LCD screen lights up completely and that there are no black spots.

MODE 2: BLACKENED LCD SCREEN

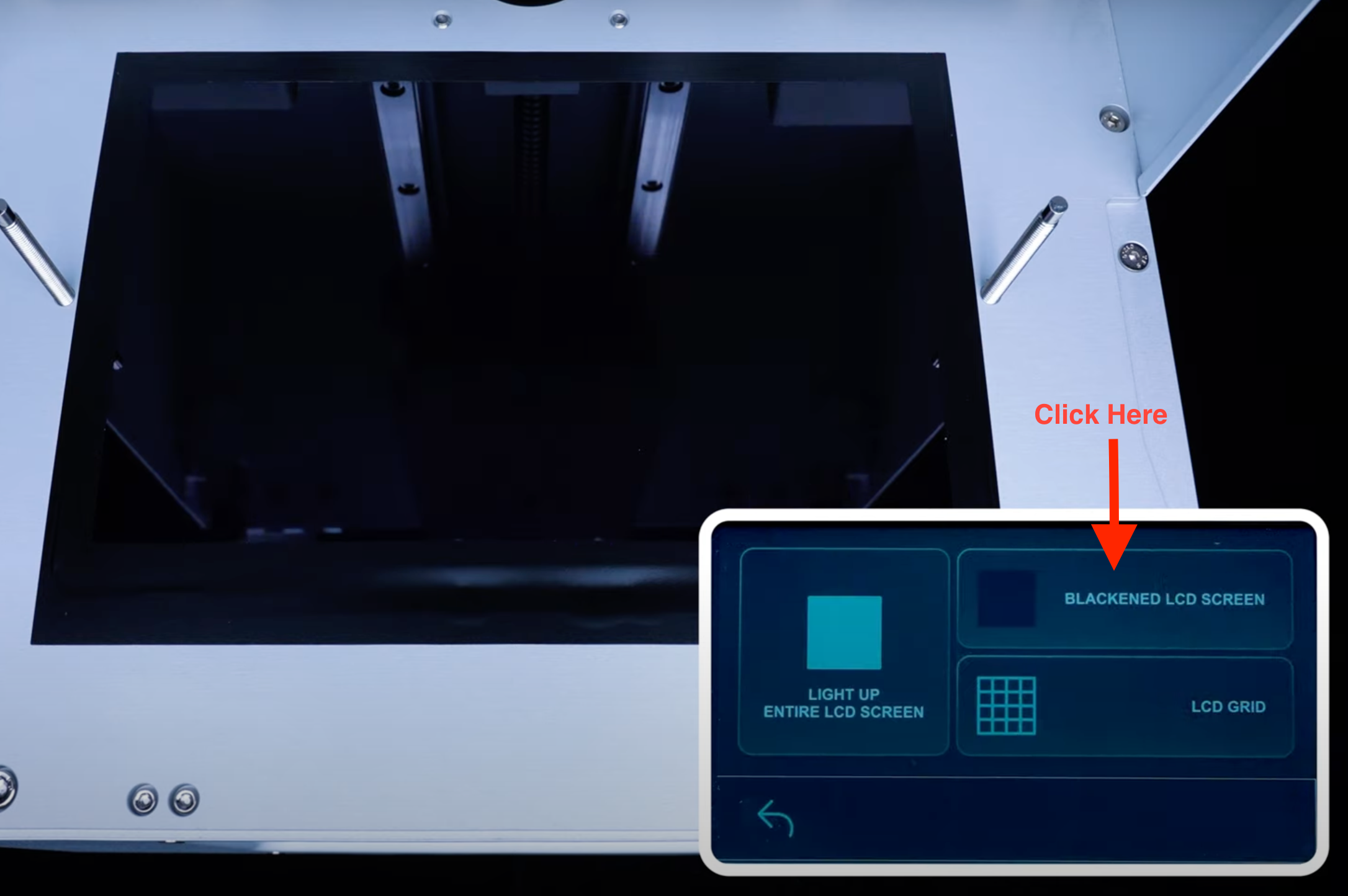

On the touch panel, click on LCD TEST. This time, make sure to click on BLACKENED LCD SCREEN.

The light on the LCD screen should be covered up completely. This is to make sure that there are no light spots and that the LCD screen is capable of covering up the light.

MODE 3: LCD GRID

On the touch panel, click on LCD TEST, then click on LCD GRID.

A grid should be displayed on the LCD screen. Run this test to make sure the UV lights are functioning properly.

LCD Test is Complete

After all 3 modes have been displayed correctly on your LCD screen, this means that your LCD screen is functioning properly. The LCD test is now complete.

It’s time to proceed to the next step: Z-axis Calibration.

Performing a Dry Print

Sometimes issues such as flickering or glitches may still be difficult to be identified after performing the above tests. This is why Dry Prints are helpful. A dry print is when you run a test print without placing the resin vat and the building plate. It is to check whether the LCD is flickering or not.

1. Remove the resin vat and the building plate.
2. Perform any test print of your choice.
3. Inspect to see if the image shown on the LCD is the same as on the touch panel.
